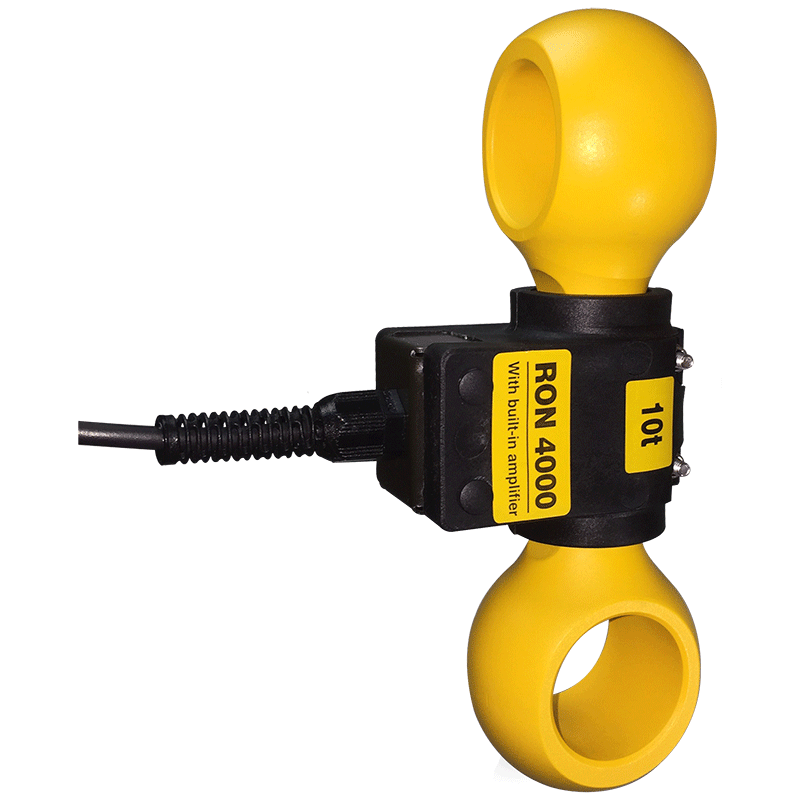

Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output)
Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output) £3,934.80
  • Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output) – Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output) – Now available at MTN Shop UK.
  • Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output) – Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output) – Now available at MTN Shop UK. - imagen 2

Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output)

Eilon Engineering |
SKU: Ron4000VS005
£4,721.76incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Capacity: 0.5 Ton
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Ron Crane Scales™ Load Cell with Built-in Amplifier (0-2V Output)

SPECIFICATIONS

  • Safety Factor: 5:1
  • Proof Load: 200% of capacity, certified (Up to a test force of 400t)
  • Designed for use with PLCs
  • Cable Length: 3m/9.5'

FEATURES

  • Single Analog Output: 0-2V
  • Small and Lightweight
  • Minimum Headroom Loss
  • Fatigue rated for longevity and safety
  • 90° between shackle holes eliminates bending of the load cell, increasing accuracy and safety
  • Made from high quality aerospace steel
  • Linearity: 0.1% of full scale
  • IP65/NEMA4 environmental protection
  • Temperature Range: -15°F to +175°F (-25°C to +80°C)
  • Calibration: Supplied with approximate calibration (final calibration is performed by customer after connecting load cell to measuring/control system)
  • Zero Load: 0V +0.05V
  • Full Load: 2V ± 0.1V
  • Maximum Input Voltage: 48V
  • Maximum Input Current: 100mA"
