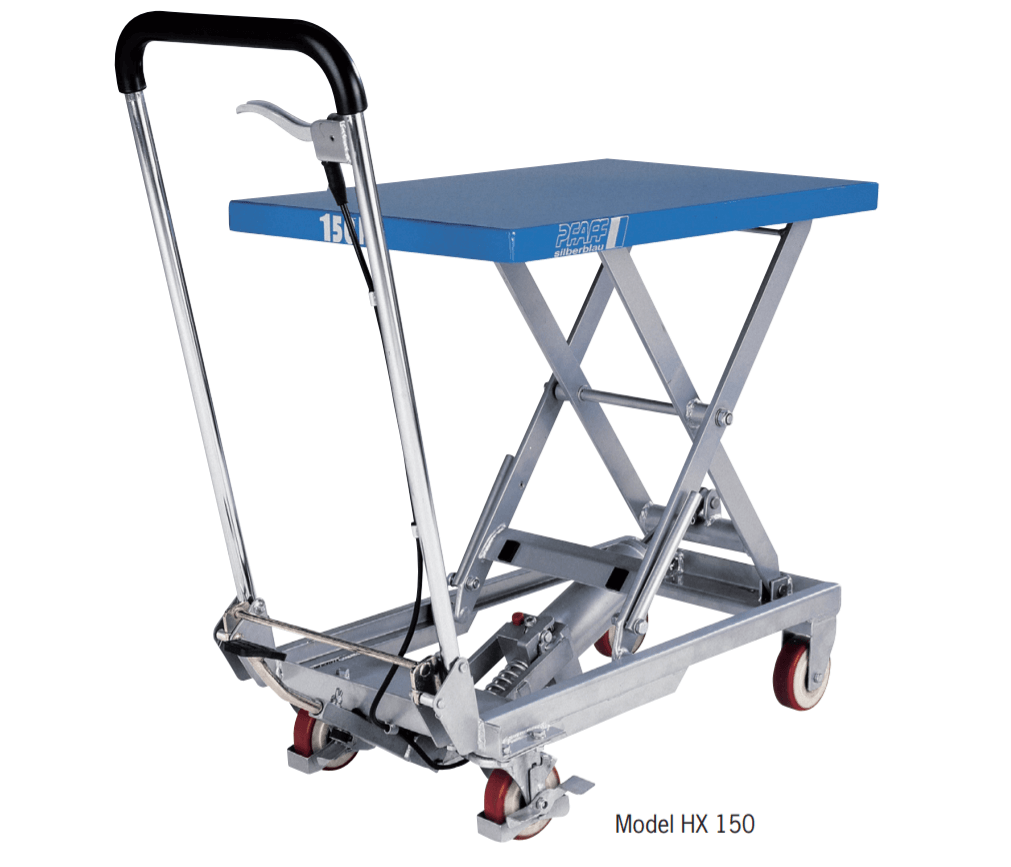

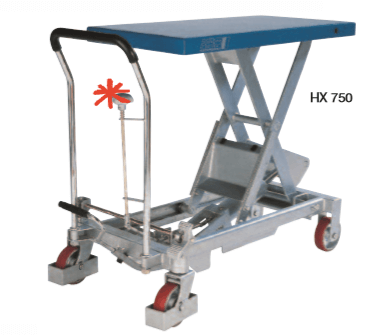

Pfaff Scissor Elevating Platform HX 150-750kg

Elevating Platform

Capacity 150 - 750 kg, platform height max. 1000 mm

For the independent lifting and supplying of loads within a warehouse environment.

FEATURES:

• A hydraulic lifting of the load with a foot pedal.
• Lowering speed can be finely metered for a sensitive lowering of the load.
• Ergonomic handlebar for easy operation, tiltable for model HX 150.
• Steering roller with parking brake for safe parking of the hand stacker.
• Robust construction with hard chromium plated piston and pressure relief valve.

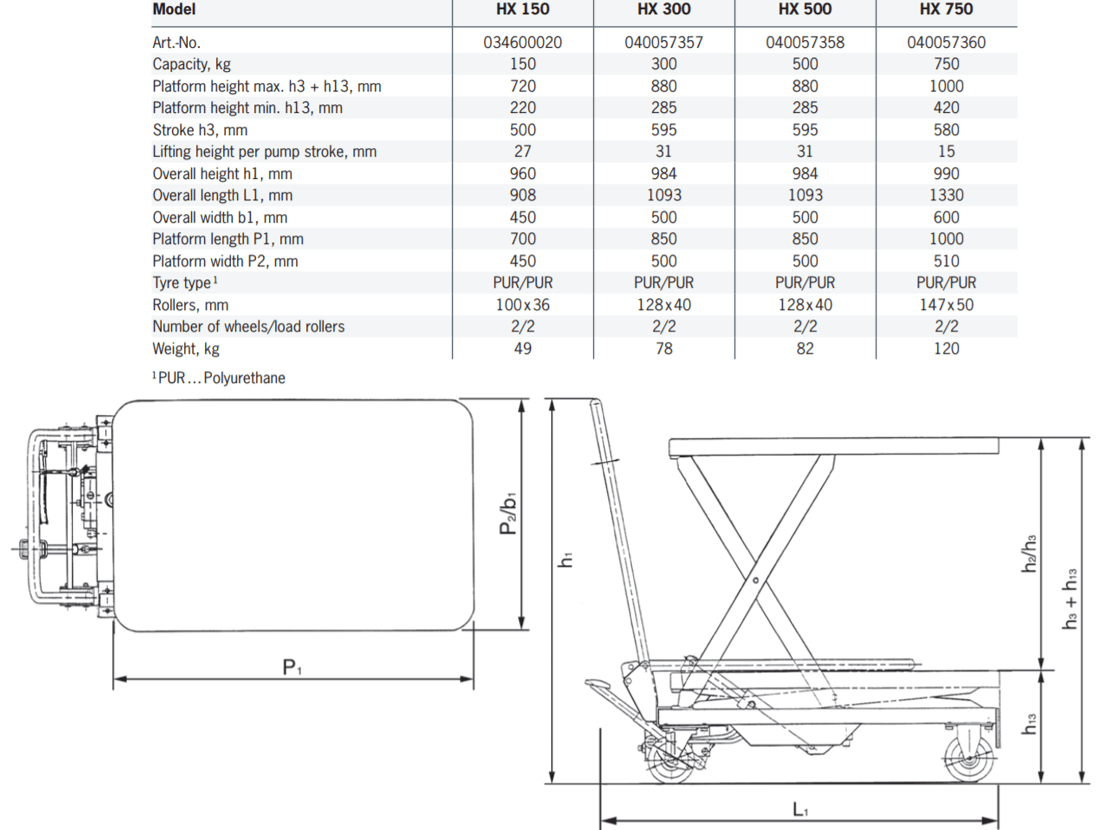

SPECIFICATIONS

• Capacity: 150 - 750 kg
• Min. platform height: 220mm - 420mm
• Max. platform height: 720mm - 1000mm
• Overall length: 908mm - 1330mm
• Overall width: 450mm - 600mm
• Tyre type: PUR/PUR (PUR…Polyurethane)
