£1,876.67
Bahco XLARGE Tool Trolley General Purpose Tool Kit, 560 Piece
£5,198.66
incl. VAT
Bahco XLARGE Tool Trolley General Purpose Tool Kit, 560 Piece
£5,198.66incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
- 560-piece kit: 9-drawer E77 trolley plus 4-drawer E87 top chest. 1400kg load capacity, drawers rated up to 45kg.
- 1DAAT system opens only one drawer at a time. Avoids tilting risk on this heavy-duty setup.
- Wheels with dual braking system. Secures the trolley solidly to the ground, preventing unwanted movement.
- Dual-walled steel case with pivoting latching system. Drawers still open after collision damage, stay shut when moving.
klarna.
Add an item to see installment options
You may also like
Bahco XLARGE 560 Piece General Purpose Tool Trolley

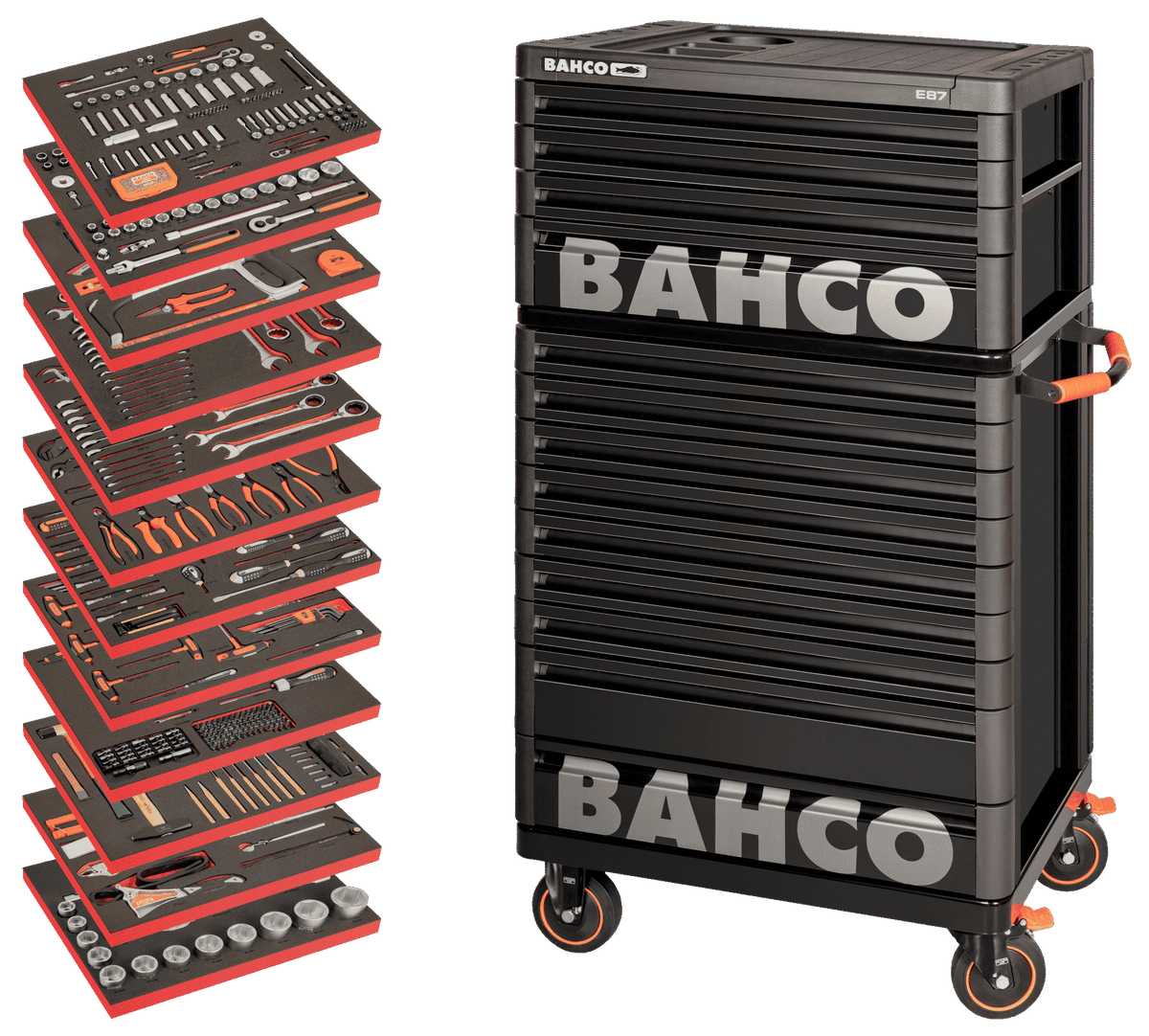

The Bahco XLARGE Tool Trolley General Purpose Tool Kit, 560 Piece combines a heavy-duty E77 trolley with 9 drawers, an E87 top chest with 4 drawers and the FF1ASET-XLARGE foam assortment. With a 1400kg total load capacity and 45kg drawer capacity, it provides an extensive tool storage solution for demanding workshop environments.
Key Features
- 560-piece general purpose tool assortment
- E77 trolley with 9 drawers
- E87 top chest with 4 drawers
- FF1ASET-XLARGE foam assortment
- 1400kg total load capacity
- 45kg load capacity per drawer
- Unique 1DAAT drawer system
- Fully opening drawers with individual shock-protection corner bumpers
- Pivoting latching system to prevent unintentional drawer opening
- Dual-braking wheel system
- Dual-walled steel construction
- Scratchproof powder coating inside and outside
- Xpand modular accessory system compatibility
- Electronic access control locking system available
560-Piece General Purpose Toolkit

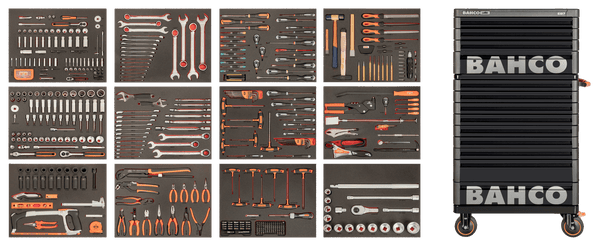

The FF1ASET-XLARGE provides a 560-piece general purpose tool assortment organised in foam modules. The complete assortment is supplied as part of the XLARGE trolley configuration.
E77 Trolley and E87 Top Chest
The XLARGE storage system combines a 9-drawer E77 trolley with a 4-drawer E87 top chest. This configuration provides 13 drawers for organising the supplied tools and accessories.
1DAAT Drawer System
The 1DAAT system ensures that only one drawer can be opened at a time, helping to avoid the risk of the trolley tilting. The fully opening drawers also feature individual shock-protection corner bumpers.
Dual-Walled Steel Construction
The trolley is built around a sturdy dual-walled steel case. The construction is designed so that the drawers can still open after collision damage to the outer wall, while the scratchproof powder coating provides protection against rust.
Secure Workshop Storage
The pivoting latching system helps prevent unintentional drawer opening. An ultimate locking system with electronic access control is also available for the storage configuration.
Wheels and Stability
The XLARGE trolley features a dual-braking wheel system designed to secure the trolley firmly in position and prevent movement in any direction. The technical specification lists 125mm wheel height and 36mm wheel width.
Xpand Modular Accessory System
The perforated side panels support the Xpand modular accessories system, allowing the workstation to be configured with additional compatible accessories. The standard composite top can also be replaced with stainless steel, MDF or chestnut options.
Technical Data
- SKU: XLARGE
- Number of Pieces: 560
- Trolley: E77 with 9 drawers
- Top Chest: E87 with 4 drawers
- Tool Assortment: FF1ASET-XLARGE
- Trolley Dimensions: 1360 x 510 x 820mm
- Total Load Capacity: 1400kg
- Drawer Heights: 50 / 116mm
- Drawer Width: 445mm
- Drawer Length: 543mm
- Drawer Load Capacity: 45kg
- Wheel Height: 125mm
- Wheel Width: 36mm
- Weight: 175kg
- RAL Colour: 9005
