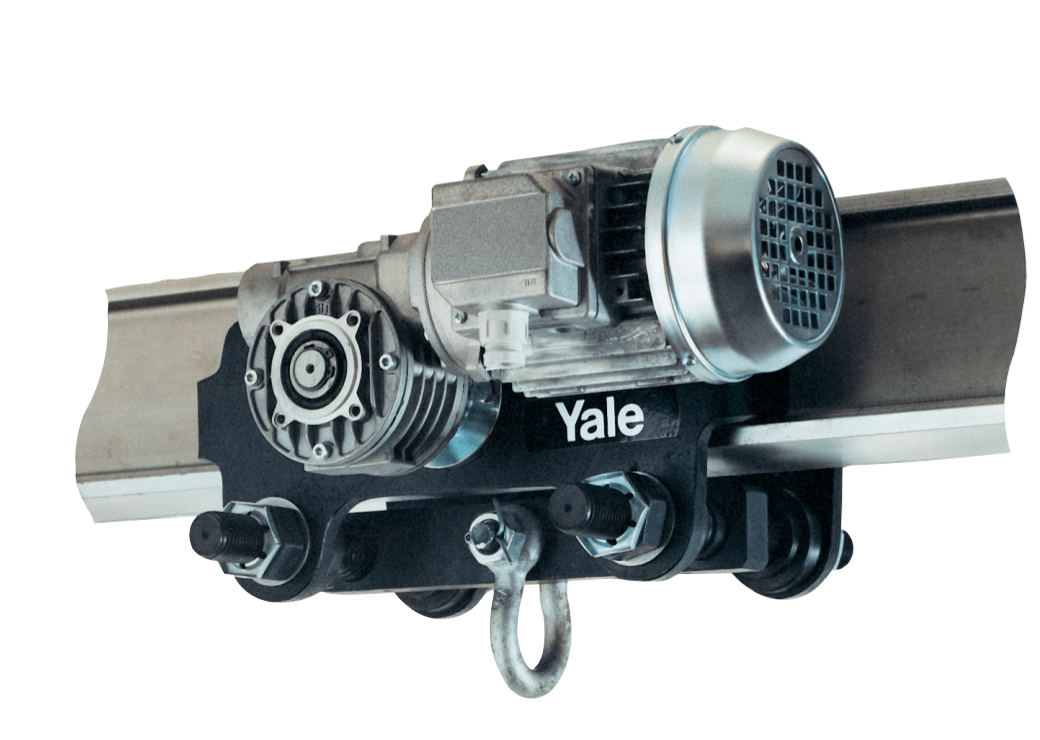

Yale Electric Trolley With Direct Control VTE-U

1 VTE 1-A-18/U

Capacity/Beam Flange Width

Electric Trolley

The motorized trolley option is the most ergonomic of all the options

Especially recommended for loads over 1000 kg, for transporting over long distances and/or when used frequently. Suitable for almost all hoists with suspension hook due to universal shackle connection.

Travel motor with worm gear transmission ensures a smooth start and self-braking – a separate motor brake is not required.

Data Sheet


FEATURES

  • Standard operating voltage: Euro-volt age 400  V, 3-phase, 50 Hz. Single speed motors can be reconnected to 230 V.
  • Motor protected to IP 55 against dust and water jets. Push-button pendant control, IP 65.
  • Compact, robust frame with low overall height.
  • Wheels manufactured from fracture-proof steel. Smooth running due to machined surfaces and ball bearing mounting. A cambered profile is suitable for parallel and inclined beam profiles.
  • Anti-drop and anti-tilt devices as standard.
  • Easily adjusted to fit a wide range of beam widths and profiles due to threaded spindles.

OPTIONS

  • Low voltage control (42 V).
  • Rubber buffers.
  • 230 V, 1-phase, 50 Hz

DETAILS

  • Yale hoists an trolleys are not designed for passenger elevation applications and must not be used for this purpose.
