Doughty Studio Rail 60 - Curved Section
£107.22
Doughty Studio Rail 60 - Curved Section
£128.66incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Radius:
0.75m
Finish:
Aluminum
- High Load Capacity. Supports heavier equipment seamlessly - ideal for studio lighting or pantograph setups.
- Easy Installation. Curved design with 150mm lead-in for straightforward assembly - perfect for quick setups in live events and productions.
- Durable Construction. Crafted from extruded aluminium for lasting performance - ensures reliability in demanding studio and touring environments.
- Versatile System. Compatible with a range of components for a complete overhead solution - adaptable for various staging and rigging needs.
- Precision Engineering. Unique joint pin system enhances alignment during assembly - crucial for achieving professional results in any production setting.
klarna.
Add an item to see installment options
DOUGHTY STUDIO RAIL CURVED SECTION
The Studio Rail 60 is an extruded aluminium rail available with all the components necessary for a comprehensive overhead studio rail system. Besides curtain, Doughty Studio Rail with a higher load capacity than Doughty rail can be used for hanging heavier equipment like pantographs or for use as a studio lighting rail that was used in the British Museum.
It features a unique joint pin system that aids assembly and joint alignment. The straight track is also available in different sizes.

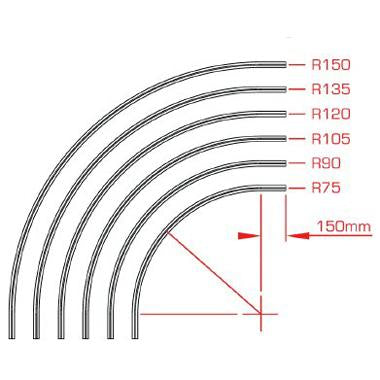

The Studio Rail curves designed with a 150mm straight lead-in and out-to enable a simple installation with standard joiners. If a more heavy-duty studio rail is required, size 80 is an ideal option that can support a load between brackets up to 200 kg that doubles studio rail 60's capacity.
Doughty Studio Rail User Manual - Gallery
Features, Benefits & Specifications of Doughty Studio Rail
- Easy and fast installation.
- Low weight when dealing with aluminium systems
- Wide range of brackets for flexible applications
-

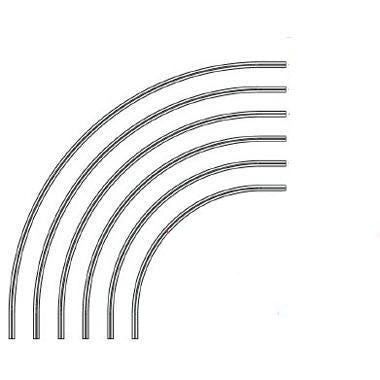

Radius & Weight:
75cm(2.15kg), 90cm(2.49kg), 105cm(2.83kg), 120cm(3.18kg), 135cm(3.51kg) and 150cm(3.85kg) - Material: Aluminum
- Finish: Natural Aluminium and Black
A Wide Range of Rail Accessories
Discover the full list of Doughty Studio Rail accessories for the unique adaptability to your needs.
-
Ceiling Bracket (25mm and 50mm)
- Corner Bracket with Wall Tie Option
- Joiner Kit
- Joint Pins
- Plastic End Stops
- Studio Rail Clamps (100mm and 40mm)
- Wall Bracket (200mm, 350mm and 500mm)
-
Cable Carriage
- Curtain Carriage
- Nylon Twin Hook
-
Cupped Curtain Brake
- 4 Wheel Carriage
- 6 Wheel Carriage
- Studio Rail Swivel Arm
- 4 Wheel Double Swivel Car
- Studio Rail Articulated Carriage
Doughty Studio Rail Set Up
