Doughty SixTrack Kit- Line Operated System
Doughty SixTrack Kit- Line Operated System £495.89

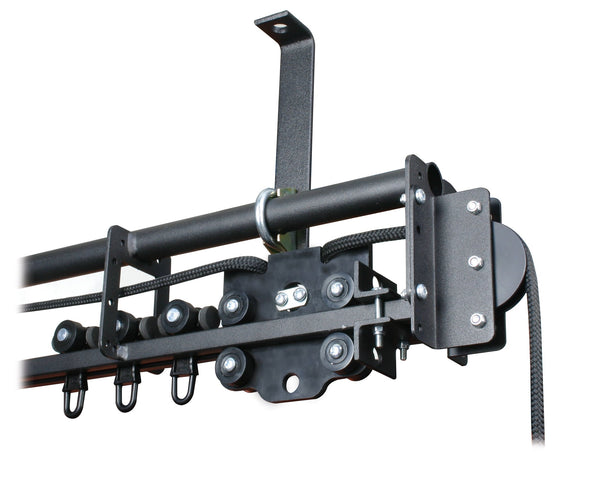

  • Doughty SixTrack line operated curtain track — close-up of master runner, pulleys and ball raced runners assembled on straight track section

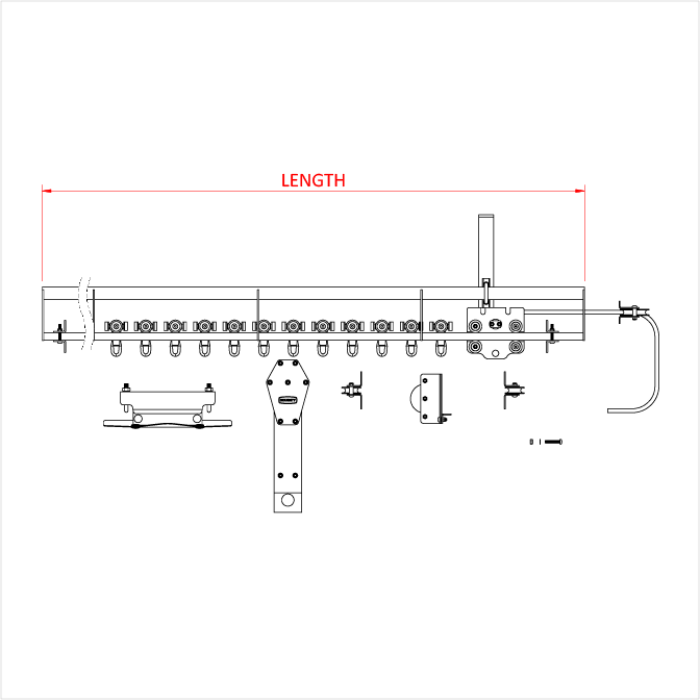

  • Doughty SixTrack line operated curtain track kit — technical diagram showing full system length with ball raced runners, master runner, adjustable support bracket, pulleys, line support and weighted hand pulley. - imagen 2

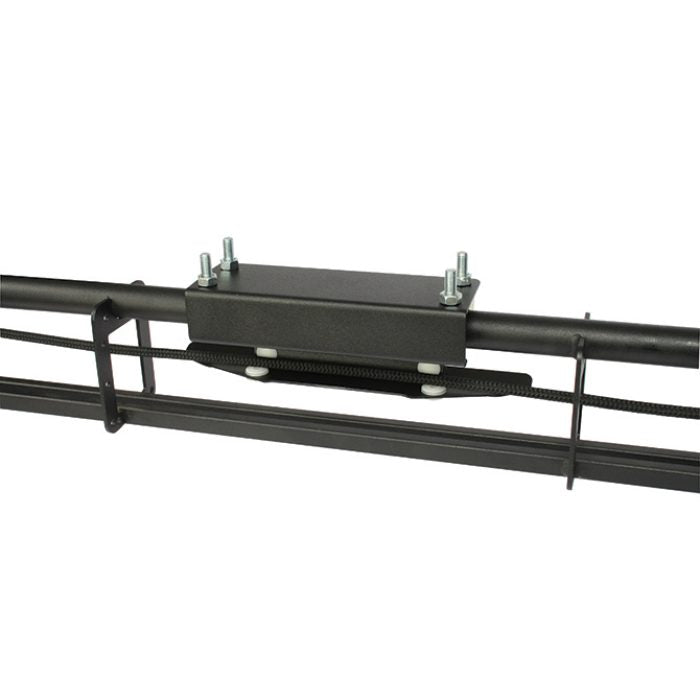

  • Doughty SixTrack Line Support — prevents hauling line from sagging on stage curtain track systems longer than 5m - imagen 3

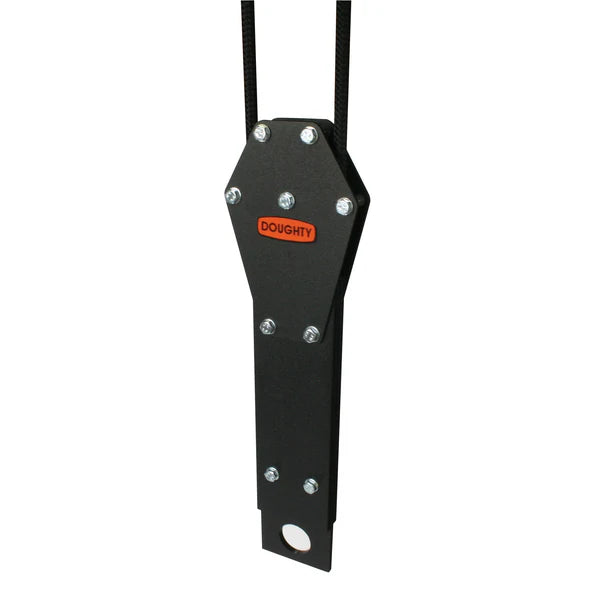

  • Doughty SixTrack weighted handline pulley — floor-mounted black steel pulley for hand operation of line operated stage curtain track system. - imagen 4

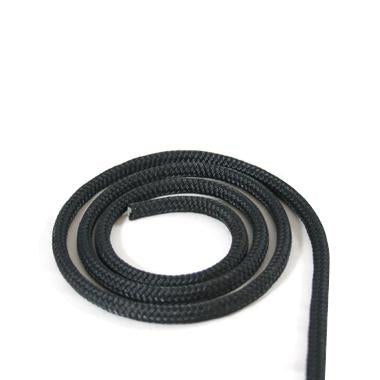

  • Doughty Sixtrack Hauling Line (200m Reel & 200kg SWL). Supplied by MTN Shop EU - imagen 5
  • Doughty Stage Curtain Track System (Sixtrack) Straight Section, ranging from 0.25m to 3m(L). Supplied by MTN Shop EU - imagen 6
  • Doughty Sixtrack End Stop(Steel)- 2 Pairs per Kit- MTN Shop EU - imagen 7

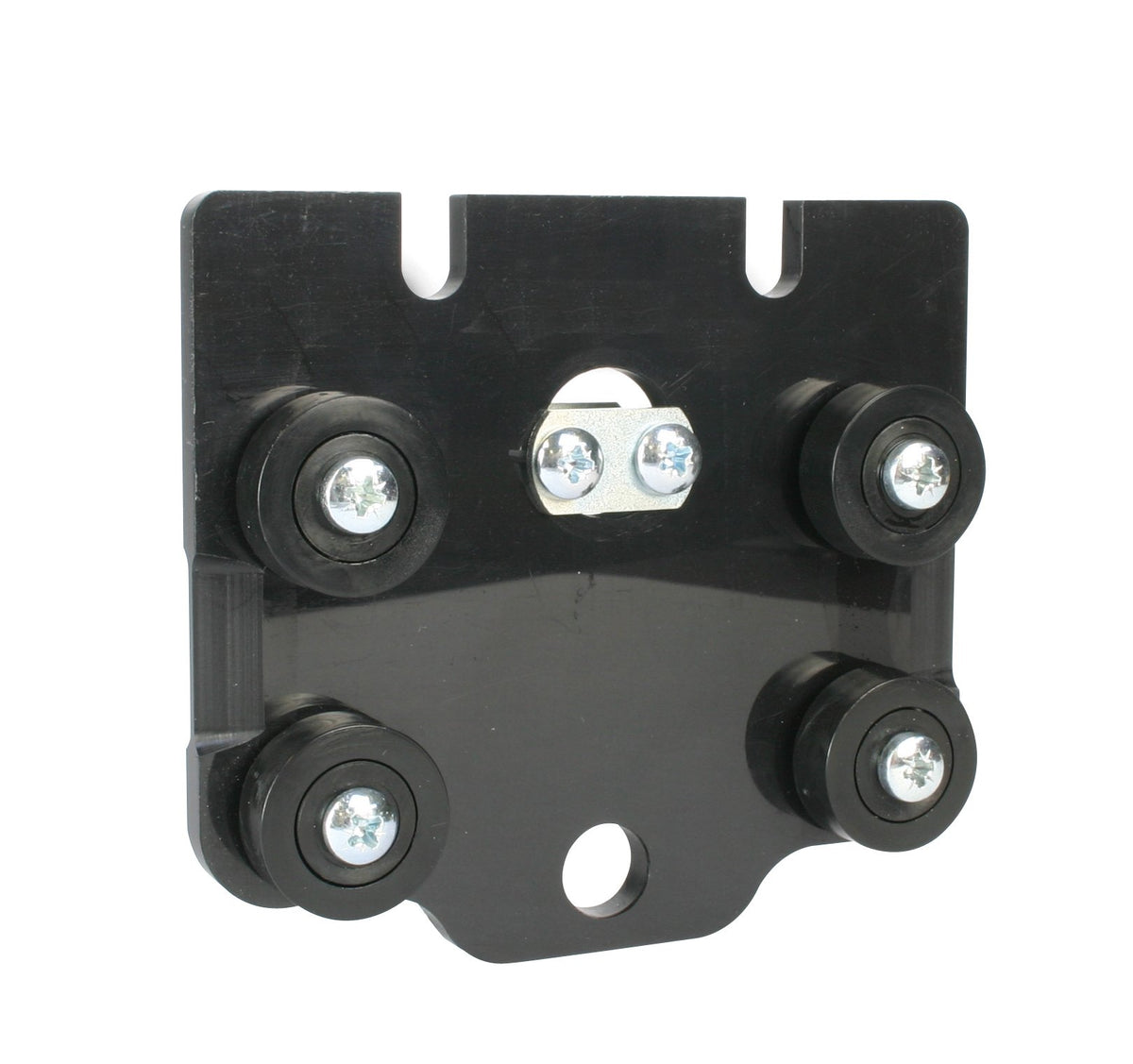

  • Doughty Sixtrack Master Runner(6kg SWL). Supplied by MTN Shop EU - imagen 8
  • Doughty Curtain Track (Sixtrack) - Ball Raced Runner(Nylon) with 6kg of SWL. Suplied by MTN Shop EU - imagen 9

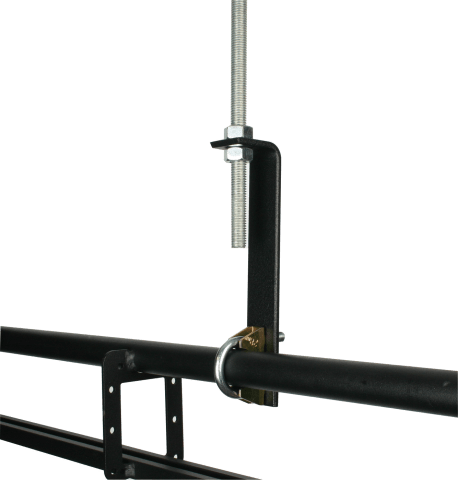

  • Doughty Sixtrack- Top Rail Clamp – It is sold separately when custom bracketry is required for special installations where standard brackets cannot be used. Good Quality. Fast Delivery. – Now available at MTN Shop UK. - imagen 10

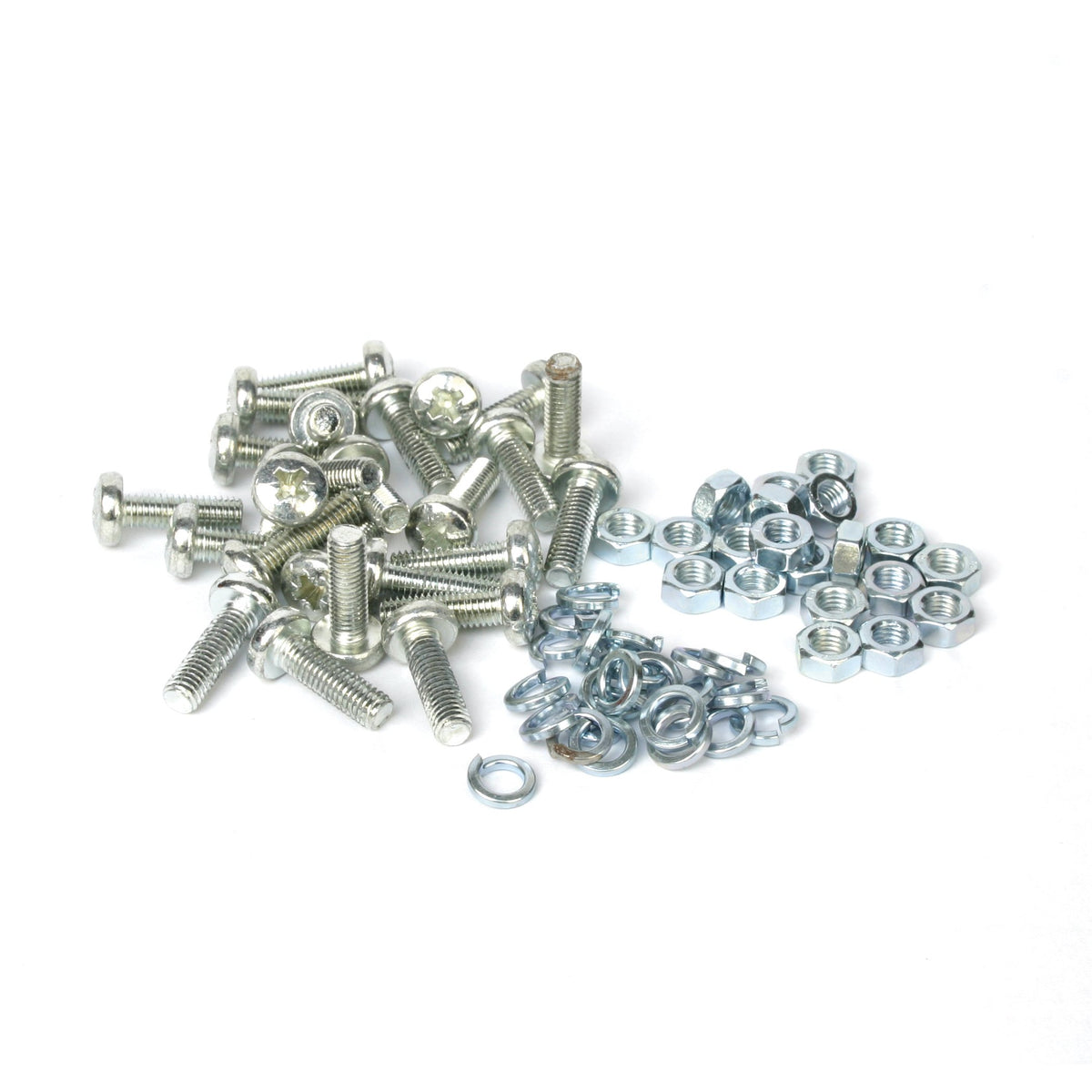

  • Doughty Six Track Fixing Kit for Stage Curtain Track - imagen 11

Doughty SixTrack Kit- Line Operated System

Doughty Engineering |
SKU: T63908
£595.07incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Shipping 3–7 days
Minimum order value of £45 Minimum order value of £45 is required to place an order for all Doughty products. 1 Year Warranty
Size: 4m
  • Complete Kit. Every component included: track, pulleys, ball raced runners, hauling line, support brackets, and weighted hand pulley.
  • Line Operated. CControlled with an 8mm polyester hauling line: by hand with a floor-mounted pulley or with a wall/floor-mounted manual track drive.
  • Three System Options. Also available as a walk-along system or line operated with overlap: for centre-opening curtain configurations.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Doughty SixTrack Kit — Line Operated System

The Doughty SixTrack is a professional stage curtain track system designed for theatres, schools, studios, and live event venues. Also known as theatre curtain track or stage curtain pulley system, this line operated curtain track kit opens the curtain from one end to the other using an 8mm diameter polyester hauling line — controlled by hand with a weighted pulley or with a wall or floor-mounted manual track drive. Available in 12 lengths from 4m to 15m, each kit includes every component required for a complete installation. British designed and manufactured by Doughty Engineering since 1985.

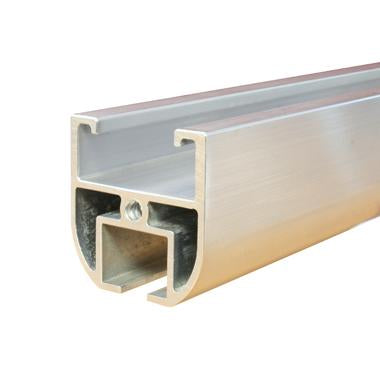

Also available as a walk-along curtain track kit and a line operated kit with overlap for centre-opening configurations. For smaller venues with limited space, the Doughty Rail is a compact, low-profile aluminium curtain track alternative.

Key Features:

  • Complete curtain track kit — every component included for a full installation
  • Available in 12 lengths from 4m to 15m
  • Operated by hand with a pulley or with a wall/floor-mounted manual track drive
  • 8mm diameter polyester hauling line for smooth, reliable operation
  • Black powder-coated steel — tubular top hanging bar and rectangular section tube rails
  • No rivets — sections can be modified or pulleys added without re-threading hauling lines
  • Maximum single track length: 10m | Maximum overlap track length: 18m
  • British designed and manufactured by Doughty Engineering

Kit Components:

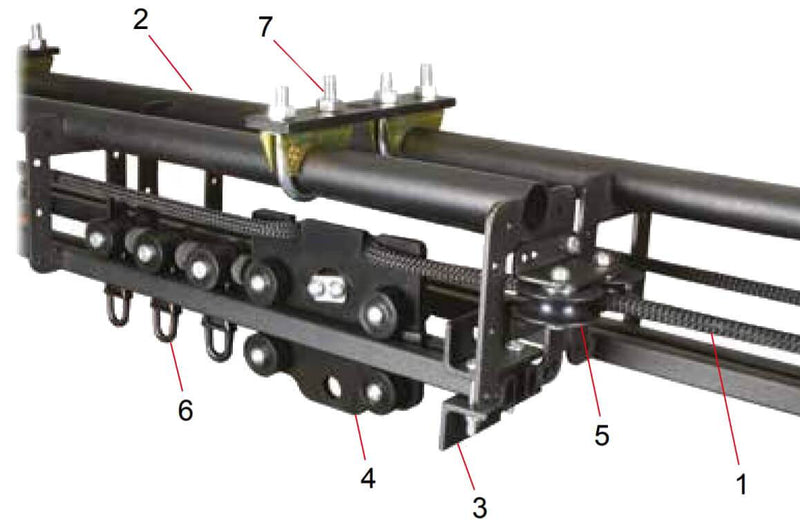

Doughty SixTrack line operated stage curtain track kit — assembled system showing hauling line, straight track, twin head pulley, master runner, adjustable support bracket, ball raced runners and ceiling bracket.
  1. Hauling Line
  2. Straight Track
  3. End Stops — 2 pairs per kit
  4. Master Runner — 1 per kit
  5. Pulleys — 1 return pulley & 1 twin head pulley
  6. Ball Raced Runners — 1 per 300mm of track
  7. Adjustable Support Brackets — 1 per 1500mm of track
  8. Line Support & Weighted Hand Pulley
  9. Fixing Kit — for joining track sections

Note: Ceiling fixings, grid fixings, and other support brackets are not included and may be required depending on individual installation methods.

Installation — Stage Curtain Pulley System

A. For systems shorter than 5m:

Stage Curtain Pulley System — installation diagram for track under 5m

B. For systems longer than 5m:

Stage Curtain Pulley System — installation diagram for track over 5m

A line support and single guide pulley are recommended for systems longer than 5m to prevent hauling lines from sagging and chaffing. Use a pre-stretched polyester cord to minimise sag. For full installation details refer to the User Manual.

Need help choosing the right curtain track system for your venue? Read our Doughty Curtain Track Guide or browse our full range of stage curtain track and entertainment and stage rigging at MTN Shop.

Frequently Asked Questions

What is included in the Doughty SixTrack Line Operated Kit?
Each Doughty SixTrack Line kit includes everything required for a complete installation: straight track, end stops (2 pairs), master runner, return pulley, twin head pulley, ball raced runners (1 per 300mm of track), adjustable support brackets (1 per 1500mm of track), hauling line, line support, weighted hand pulley, and a fixing kit for joining track sections. Ceiling fixings and grid fixings are not included as these vary depending on individual installation methods.
What is the maximum length of a Doughty SixTrack Line operated system?
For the Doughty SixTrack Line, the maximum recommended length for a single span track is 10m. For an overlap configuration, the maximum recommended length is 18m. Doughty SixTrack Line kits are available in 12 lengths from 4m to 15m. For longer runs, multiple sections can be joined using the fixing kit included in every kit.
What is the difference between the Doughty SixTrack Line operated system and the walk-along system?
The Doughty SixTrack Line operated system uses an 8mm polyester hauling line to open and close the curtain. The operator stands at one end of the stage and pulls the line, allowing the curtain to be operated from a fixed position without walking with it. The walk-along system is simpler and operated by manually pulling the curtain cloth directly. The Doughty SixTrack Line operated system is more professional and suited to larger venues where the operator cannot walk with the curtain.
Do I need any additional fixings to install the Doughty SixTrack Line?
The Doughty SixTrack Line kit includes all track components but does not include ceiling fixings, grid fixings, or other structural support brackets, as these vary depending on your venue and installation method. Refer to the Doughty SixTrack Line User Manual for full installation guidance and recommended fixing methods for different ceiling and grid types.
