Doughty SixTrack Kit- Line Operated System with Overlap
£776.00
Doughty SixTrack Kit- Line Operated System with Overlap
£931.20incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Length:
4m
- Modular Design. Customizable for various stage applications - includes all necessary components for installation.
- Smooth Operation. Line-operated system ensures effortless curtain movement - perfect for professional theatre and live events.
- Effective Overlap Feature. Allows for seamless transitions with an overlap length of 1.0m - ideal for achieving complete coverage on stage.
- Complete Kit. Contains all essential parts like pulleys and runners - simplifies setup for quick deployment in touring scenarios.
- High-Quality Build. Made for frequent use in demanding environments - designed to withstand the rigors of stage production.
klarna.
Add an item to see installment options
Overlapping Curtain Track
Doughty Curtain Track, also called Six Track, is a modular stage curtain track system suitable for a wide range of stage and theatre applications.

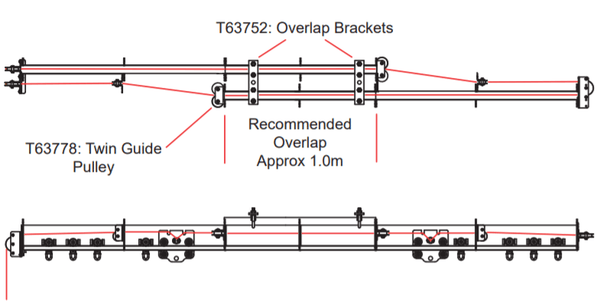

Six Track line-operated systems can be installed in an overlap configuration, requiring the use of overlap brackets and twin guide pulleys (See the diagram). The recommended overlap length is approximately 1.0m.
This Stage Curtain Track Kit includes all the components required to install your chosen track length. A Line-operated system without Overlap is also available and a wide range of track lengths is in stock.
Doughty Stage Curtain User Manual

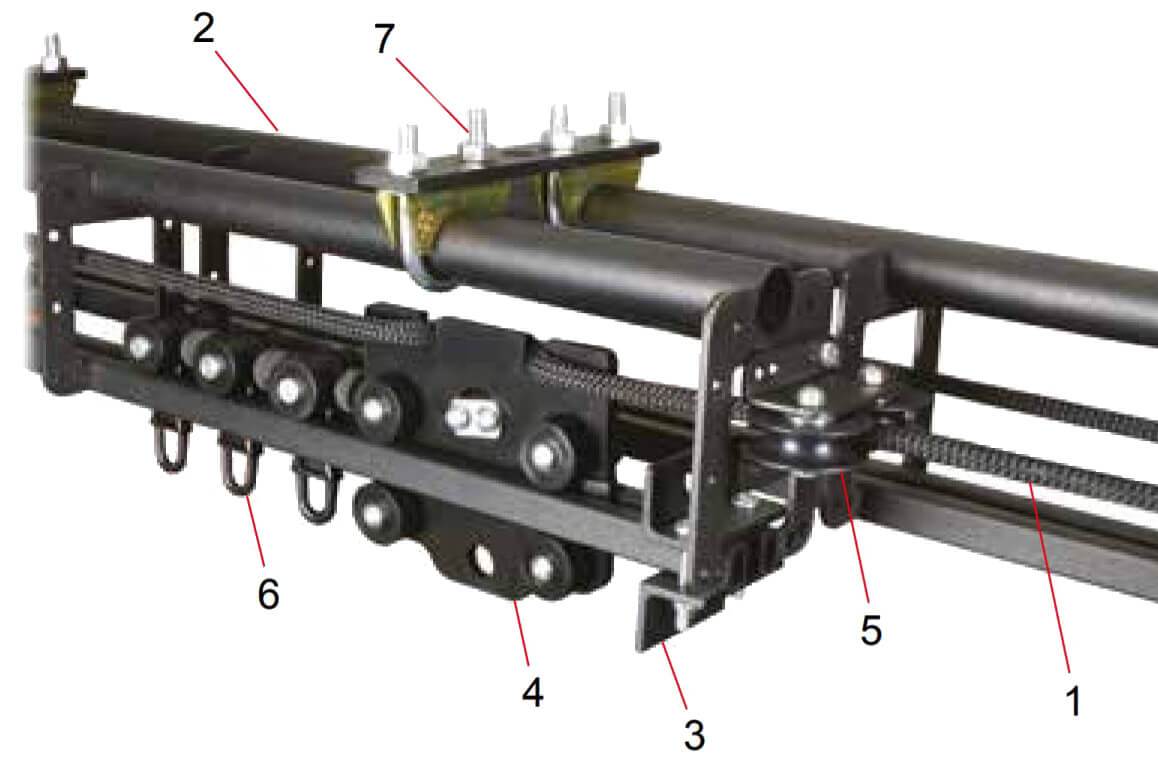

Components of Corded Overlapping Curtain Track
1. Hauling Line
2. Straight track
3. T63760 End stops (2 pairs per kit)
4. T63755 Master runner (2 per kit)
5. Pulleys (2 guide pulleys, 1 return pulley & 1 twin head pulley)
6. T63756 Ball raced runners (1 per 300mm of Track)
7. T63752 Overlap brackets (2 per Kit)

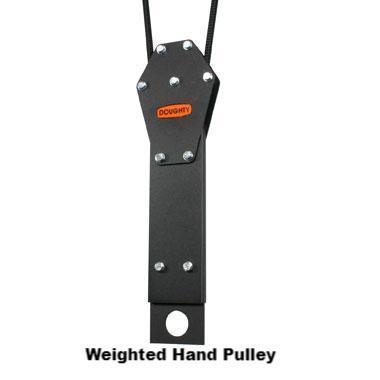

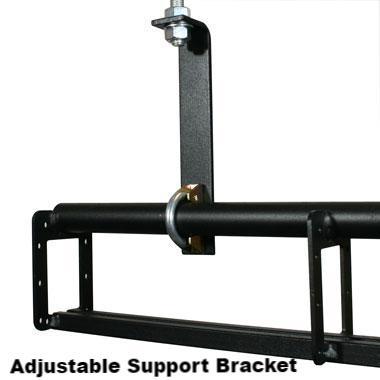

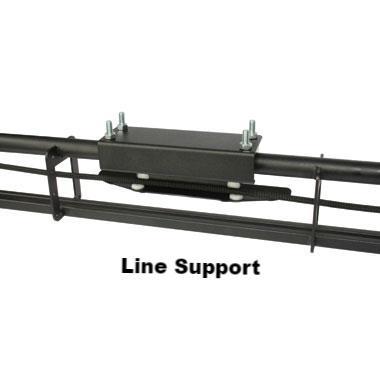

8. Line supports, weighted hand pulley and adjustable support brackets
Note:
1/ Other support brackets and fasteners may be required depending on individual installation methods.
2/ The maximum recommended length of a single span track is 10 meters and 18.0 meters for an overlap track system.
Corded Overlapping Curtain Track Set Up
A: With only straight tracks:
B: With curved tracks:
In an overlap layout with curved sections, there are more twin guide pulleys involved to guide the hauling line across the curved sections.
