Doughty Studio Rail - Suspension Bracket
£47.40
Doughty Studio Rail - Suspension Bracket
£56.88incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
No. of Studio Rails to be Hung:
2
Studio Rail Options:
Studio Rail 60
- Enhanced Suspension. Securely support two or three Studio Rails from one point - designed with 100kg SWL for both sizes 60 and 80.
- Space Optimized Design. Maintains standard 150mm spacing between rails - perfect for efficient rigging in tight setups.
- Versatile Fixing Options. Includes side fixing capability for additional stability - ideal for securing grids or perimeter rails.
- Heavy-Duty Support. Two sizes available to cater to different load requirements - the sturdy Studio Rail 80 accommodates heavier loads.
- Streamlined Installation. Features 13mm diameter fixing holes for quick setup - essential for rapid deployment in live events and productions.
klarna.
Add an item to see installment options
Doughty Studio Rail - Suspension Bracket

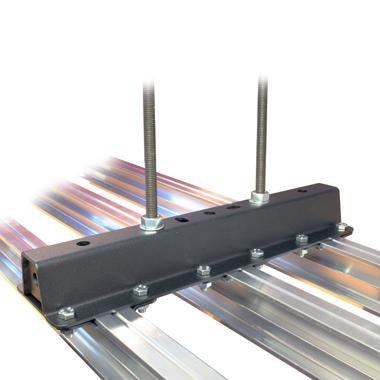

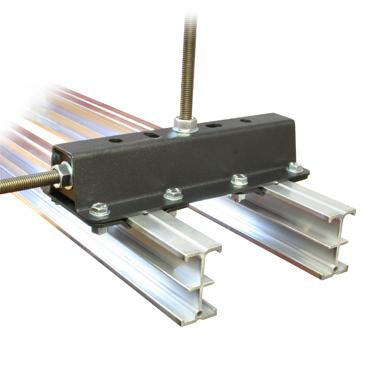

The Suspension Bracket enables two or three Doughty Studio Rail size 60 and size 80 to be suspended from one suspension point.
The rails are spaced at the Studio Rail standard 150mm centres.
The option to use a side fixing is standard with this bracket enabling grids or perimeter rails to be steadied with wall fixings.
Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
For any inquiries, please contact us via chat.
Specifications - Studio Rail 80
- SWL: 100Kg
Specifications - Studio Rail 60
- SWL: 100Kg
- Fixing Holes: 13mm Diameter
- Width: 100mm
-
Length:

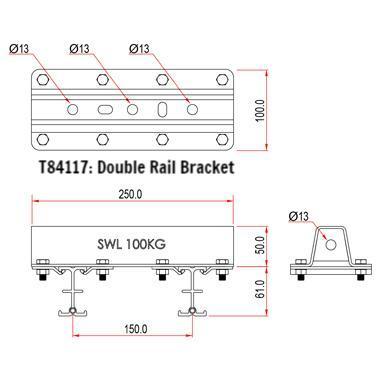

T84117 (Double Rail Bracket): 250mm

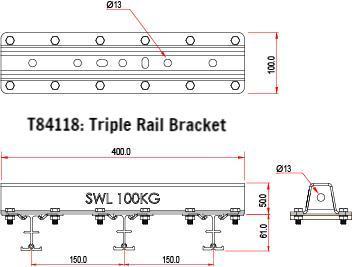

T84118 (Triple Rail Bracket): 400mm
Please refer to the images for more details.
