- Heavy-Duty Options. Choose between robust configurations for increased load capacity - studio rail sizes 60 and 80 designed for different demands.
- Smooth Operation. Features wheel sealed ball raced wheels for effortless movement - ideal for seamless transitions in studio setups and live events.
- Secure Cable Management. Fitted with a cable tie saddle to prevent tangling - essential for clean and organized rigging in any production environment.
- Retrofits Made Easy. Carriages can be split to retrofit mid-rail without hassle - perfect for adapting existing setups without complete overhauls.
- Consistent Loading. Both sizes support a safe working load (SWL) of 6kg - ensuring reliability and peace of mind in any theatrical or production context.
Doughty Studio Rail - Cable Carriage

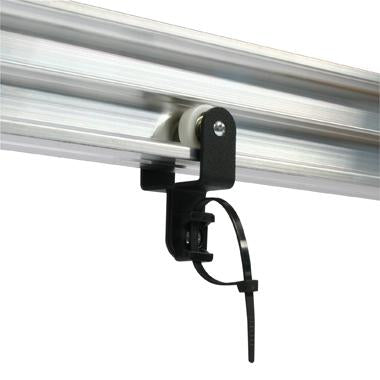

A steel-framed cable carriage with wheel sealed ball raced wheels.
There is a cable tie saddle fitted to secure cables. These carriages can be split to be retrofitted mid-rail. Options are available for studio rail size 60 and 80.
Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
Specifications of Studio Rail 80 Cable Carriage
- SWL: 6kg
- Dimension: 82mm x 60mm (See the thumbnail)
- Width: 20mm

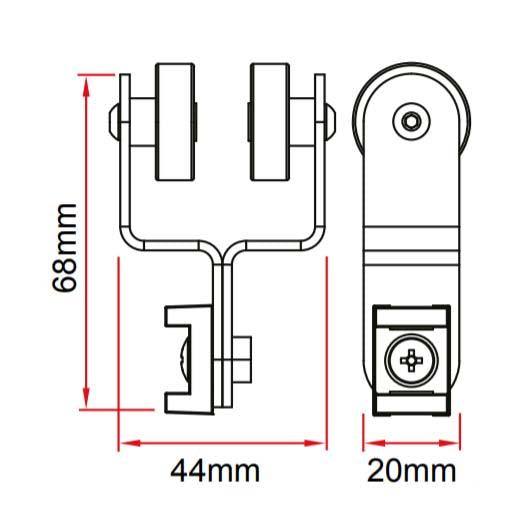

Specifications of Studio Rail 60 Cable Carriage
- SWL: 6kg
- Dimension: 68mm x 44mm (See the thumbnail)
- Width: 20mm
