Doughty Studio Rail - 4 Wheel Carriage with Spigot
£40.70
Doughty Studio Rail - 4 Wheel Carriage with Spigot
£48.84incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Spigot:
Standard 16mm
Studio Rail Option:
Studio Rail 60
- Heavy-Duty Capacity. Supports loads up to 200 Kg - perfect for high-demand studio applications with the 80 size model.
- Smooth Operation. Equipped with a four-wheel design and friction brake - ideal for precise movements in live event setups.
- Versatile Compatibility. Designed to accept a standard 16mm receiver - ensures easy integration with existing equipment in film and theatre.
- Lightweight Design. Weighs only 0.5kg for the standard model - easy to transport and install for touring productions.
- Multiple Sizes Available. Choose between size 60 and 80 for tailored support - ideal for varying project demands across different venues.
klarna.
Add an item to see installment options
Doughty Studio Rail - 4 Wheel Carriage w/Spigot

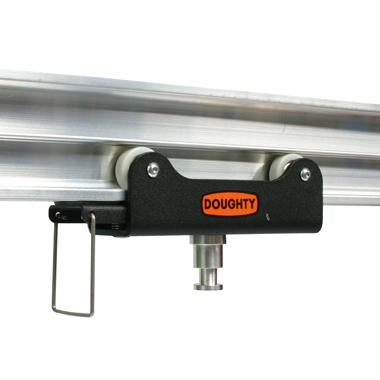

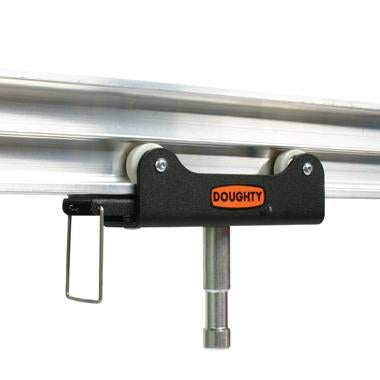

The four-wheel carriage is fitted with a 16mm diameter spigot to accept a 16mm diameter receiver. A friction brake is also fitted with a wire loop to allow the carriage to be moved with an operators pole. Two sizes of Spigots are available for studio rails 60 & 80.
Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
Specifications of Size 80 4-wheel carriage:
- SWL: 200 Kg
-
Length of 16mm Spigot:
Standard(T85185): 70mm
Mini(T85186): 30mm -
Weight:
Standard(T84185): 0.5kg
Mini(T84186): 0.45kg - Length of the Carriage: 125mm
Specifications of Size 60 4-wheel carriage:
- SWL: 50 Kg
-
Length of 16mm Spigot:
Standard(T84185): 70mm
Mini(T84186): 30mm -
Weight:
Standard(T84185): 0.6kg
Mini(T84186): 0.5kg - Length of the Carriage: 159mm
