Doughty Modular Rigging System- Tee w/Thru Connector for Stage Lighting Rigging
£115.33
Doughty Modular Rigging System- Tee w/Thru Connector for Stage Lighting Rigging
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Colour:
Silver
- Rapid Setup. Achieve quicker stage lighting rigging - part of the award-winning Doughty Modular Rigging System.
- Enhanced Safety. Designed as a robust alternative to homemade solutions - ensuring peace of mind during live events.
- Versatile Configurations. Supports innovative lighting designs with multiple setups - perfect for theatre and touring productions.
- Durable Construction. Made from high-quality aluminium for reliable support - ideal for regular use in professional environments.
- Seamless Integration. Connects easily with compatible clamps and couplers - simplifies your rigging process for any scale of production.
klarna.
Add an item to see installment options
Drop Arm Tee with Through Connector for Stage Lighting Rigging

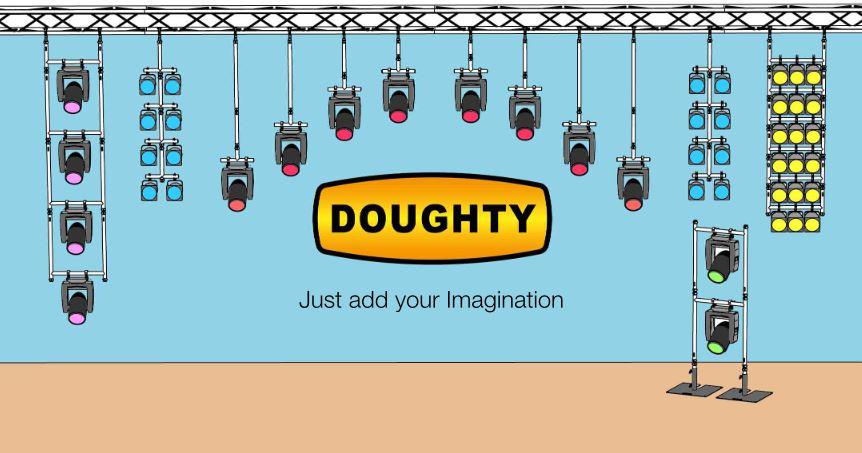

Award-winning Stage Lighting System
These Modular Tees are parts of the Doughty award-winning Modular Rigging System, offering faster stage lighting rigging solution with improved safety. The range is already being hailed as a strong, safe alternative to home-made drop arms, which until now have been the only option for riggers. With a range of configurations, Doughty Modular Rigging System opens up the possibility for highly innovative lighting design.

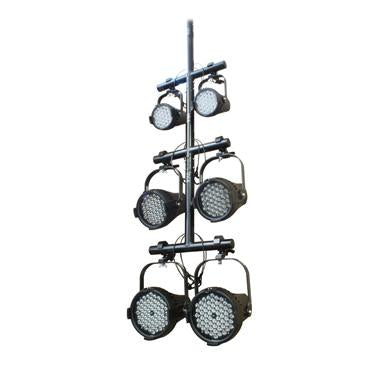

Create a Ladder Frame for a Number of Par Cans
These drop arms are designed to suspend luminaires from truss or fixed tubes and barrels, providing an excellent lighting rigging method. A clamp/coupler fitted with a connector such as T45800 and T45825 enables the drop arm to be attached to the truss.

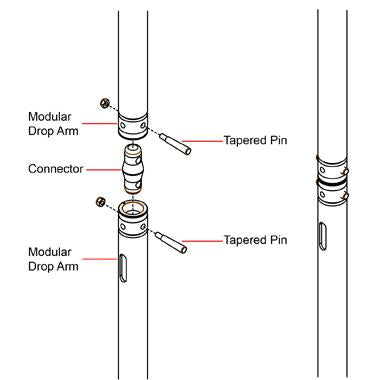

Drop Arm tees with through connector are manufactured from aluminium and fitted with a female tapered connector each end. Connections between the tees are made with Doughty T45755 connector.
Unlike the regular drop arm tees, these tees can be used for connection to create a ladder frame for a large bank of par cans, etc. At MTN SHOP, we stock a wide variety of 48mm diameter Doughty Clamps for suspending luminaries.
Slots are provided for safety bonds. For any inquiries, please contact us via chat.
Specifications:
- SWL: 100kg
- Weight: 1.6kg
- Width: 450mm
- Diameter: 48mm
- Material: Aluminum
- Finish: Powder-painted painted in silver or satin black
- Modular Tees with through Connector are supplied with a tapered pin & nyloc nut
Products you need to create lighting trees/ladders:
- Coupler with Half Connector(48mm): To connect drop arms to a piece of truss with a diameter of 48mm
- Drop Arm Tee with Through Connector: To allow lanterns to be mounted on and connect drop arms to form a large frame
- Connector
- Drop Arm Extension (Adjustable or Standard): To link one tee with through connector to another one to form a large lighting tree
- Safety Bond (Secondary suspension device)
- Drop Arm Tee Extension: To allow lanterns to be mounted on
