Doughty Atom Half Coupler 25-38mm
£6.94
Doughty Atom Half Coupler 25-38mm
£8.33incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
25mm:
25mm
Aluminium:
Aluminium
- Lightweight Design. Perfect for suspending fixtures without adding bulk - weighs as little as 0.04kg for the 25mm clamp.
- Versatile Compatibility. Fits a range of tube diameters from 25mm to 38mm - ideal for integrating with various stands and trusses.
- High Load Capacity. Supports a maximum load of 100kg - designed for reliable use in professional lighting applications.
- Secure Attachment. Features a slotted base for M6/M10 nut or bolt - ensures stable connections in demanding environments.
- Professional Grade. Engineered from extruded aluminium for durability - a must-have in TV, film, theatre, and live events.
klarna.
Add an item to see installment options

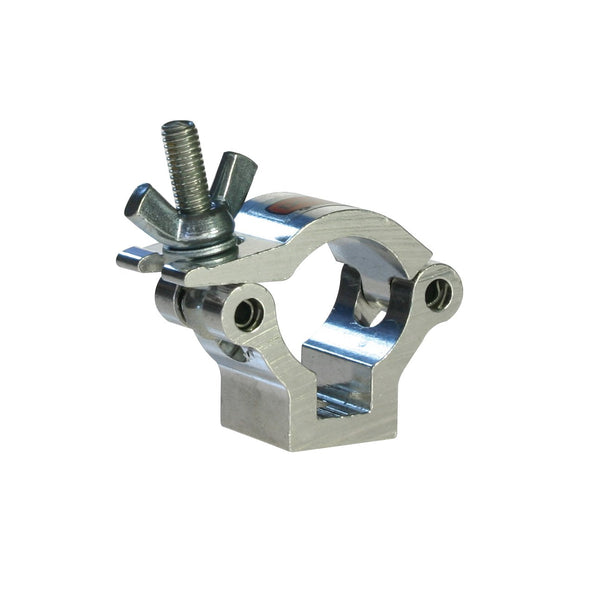

Doughty Half Coupler 25mm/32mm/35mm/38mm

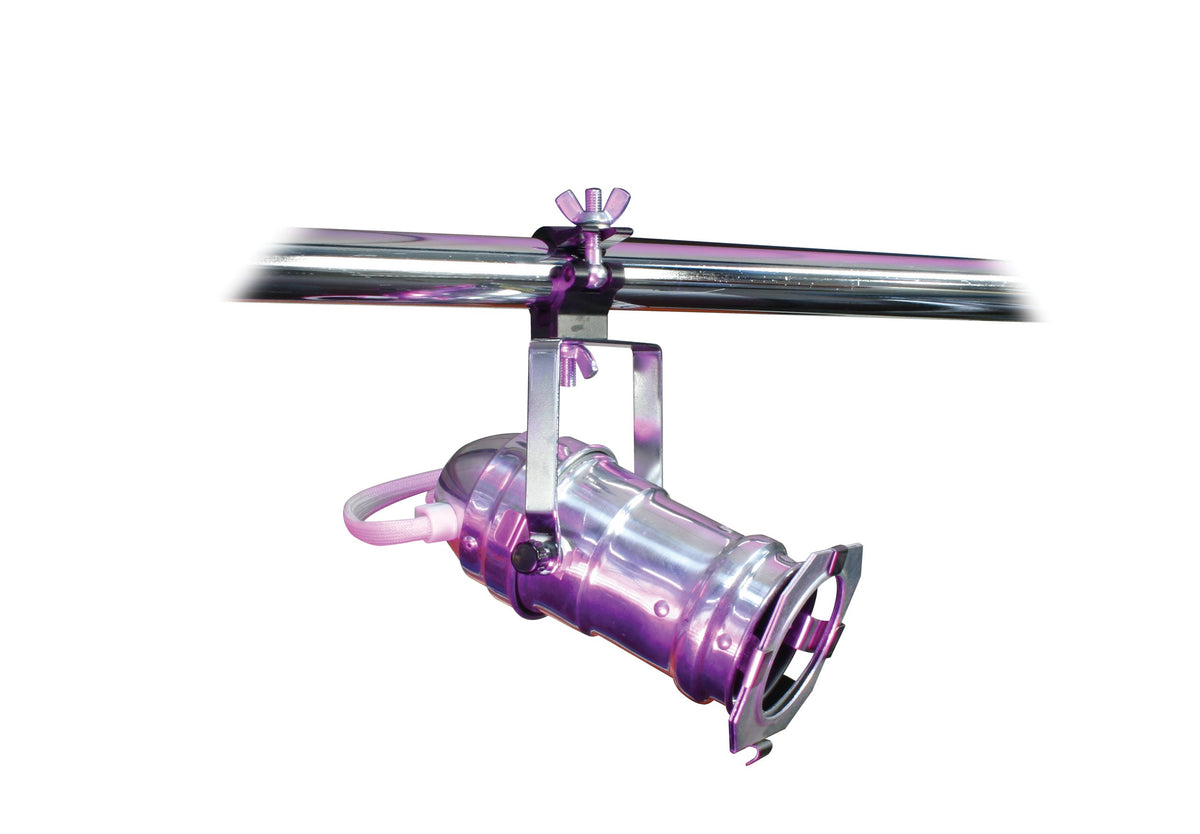

Atom Clamps are the smallest of the Doughty range of extruded aluminium stage lighting clamps. These doughty clamps have a WLL of 100kg to suspend lightweight fixtures from a small diameter tube.
Not only are they suitable for lightweight trusses, but also the centre tube on most varieties of stands.

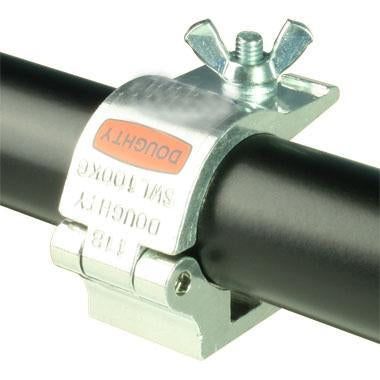

This Doughty Half Coupler also has a slotted base to captivate an M6/M10 Nut or Bolt. For any inquiries, please contact us via chat.

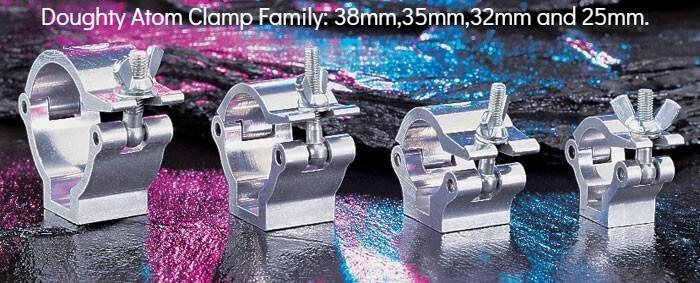

Spec Sheet of the Atom Half Coupler Range
Specification:
- Tube Diameter: Fit 25mm/32mm/35mm/38mm diameter tubes
-
Width:
- 25mm Clamp: 21mm
- 32mm Clamp: 30mm
- 35mm Clamp: 30mm
- 38mm Clamp: 30mm -
Weight:
- 25mm Clamp: 0.04kg
- 32mm Clamp: 0.08kg
- 35mm Clamp: 0.09kg
- 38mm Clamp: 0.09kg - Max. Load Capacity: Load bearing up to 100kg
- Fixing hole on the base: 6mm Diameter
- 25mm Clamp: 6mm
- 32mm Clamp: 6mm
- 35mm Clamp: 10mm
- 38mm Clamp: 10mm - Material: Aluminum
- Finish: Available in both aluminium and black
- Applications: Ideal for shop displays, film lighting, etc.
Other Sizes of Doughty Half Coupler:
- 50mm Half Coupler Clamp: Standard, Lightweight, Super Lightweight, Slimline, Slimline & Lightweight
- 60mm Half Coupler Clamp: Standard, Slimline
HOOK CLAMP • QUICK TRIGGER CLAMP • HALF COUPLER CLAMPS
Manufacturer Information:
Doughty Engineering has begun to manufacture products for the entertainment industry since 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. As a member of the Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.
