Steerman YAM Machine jacks with lifting claw
Steerman YAM Machine jacks with lifting claw £464.16
  • Steerman YAM Machine jacks with lifting claw
  • Steerman YAM Machine jacks with lifting claw - imagen 2
  • Steerman YAM Machine jacks with lifting claw - imagen 3

Steerman YAM Machine jacks with lifting claw

Steerman |
SKU: N13100912
£556.99incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Model: YAM-2
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

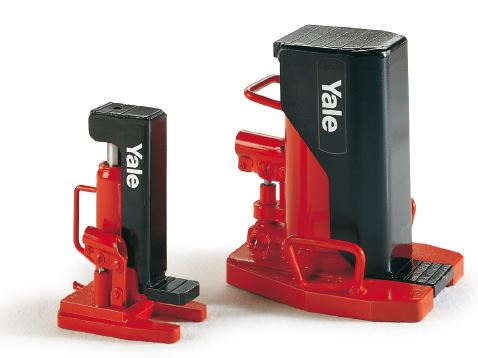

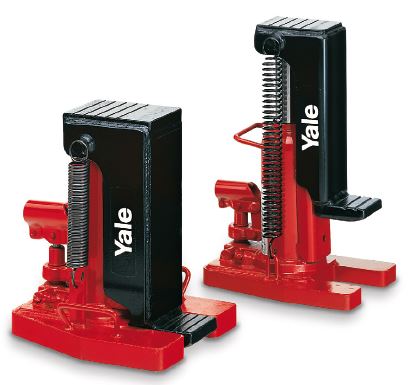

YAM – Machine Jacks with Lifting Claw

Capacity: 2 – 15 t

Machine jacks with lifting claw are used in applications where space below the load is restricted, preventing the use of traditional lifting equipment.

Typical applications include lifting, positioning and transportation of machines, heavy steel constructions or similar loads, as well as general repair and assembly work.

The jacks are also suitable for leveling high-rise warehouses, heavy-duty scaffolds, large frameworks and similar structures.

Features

  • Safe lifting of machines with extremely low clearance
  • Integrated safety pressure valve to prevent overload
  • Large base for increased stability under load
  • Pump lever rotates through 270° (excluding YAM-2)
  • Same load can be lifted on either the head or the claw
  • Spring return of the lifting claw (YAM-5 and YAM-10 only)
  • Precision-adjustable lowering valve
  • Supplied ready to use including pump lever and filled with oil

YAM Machine Jacks – Technical Data

Model Art.-No. Capacity on claw (t) Stroke (mm) Weight (kg)
YAM-2 N13100912 2 113 8
YAM-5 N13100627 5 120 19
YAM-10 N13100628 10 145 38
YAM-15.1 N13100914 15 140 53

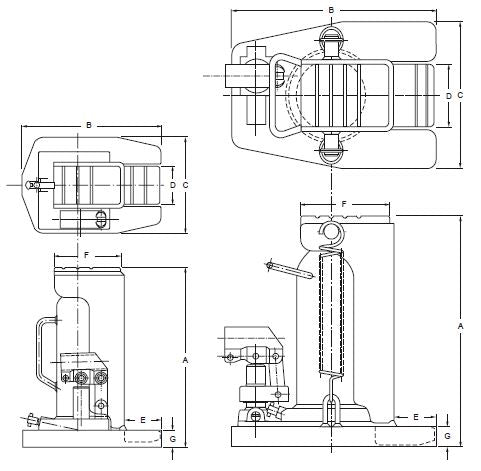

Dimensions YAM (mm)

Model A B C D E F G
YAM-2 235 180 125 50 50 85 16
YAM-5 290 257 182 75 57 117 26
YAM-10 325 280 240 100 60 150 33
YAM-15.1 344 321 258 110 60 168 33
