Doughty 90 Degree Fixed Coupler (60mm Mammoth Clamp - Various Sizes)
£51.42
Doughty 90 Degree Fixed Coupler (60mm Mammoth Clamp - Various Sizes)
£61.70incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Aluminium:
Aluminium
48-51mm & 60-63mm:
60-63mm
- Robust Construction. Ensures a secure connection between truss bars - made from high tensile Aluminium Extrusion for strength and durability.
- Versatile Compatibility. Fits multiple tube diameters for various setups - accommodates both 60mm to 63mm and mixed 60mm with 48mm to 51mm tubes.
- High Load Capacity. Supports substantial equipment safely - tested with a Safe Working Load of 500 Kg for reliable performance in demanding environments.
- Lightweight Design. Easy to transport and handle during setups - weighs only 0.90 Kg, perfect for touring and live events.
- Finishing Options. Choose your preferred aesthetic - available in sleek black or polished aluminium finishes to match your equipment.
klarna.
Add an item to see installment options

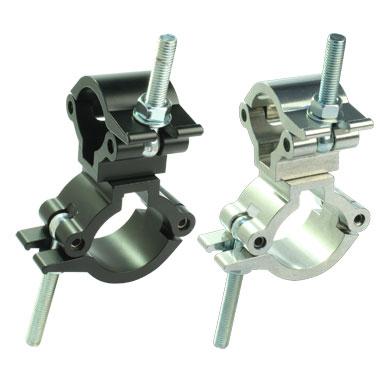

90 Degree Fixed Coupler - 60mm Mammoth Clamp

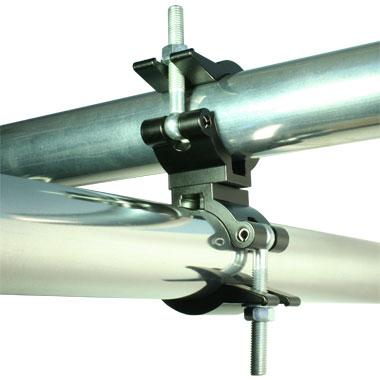

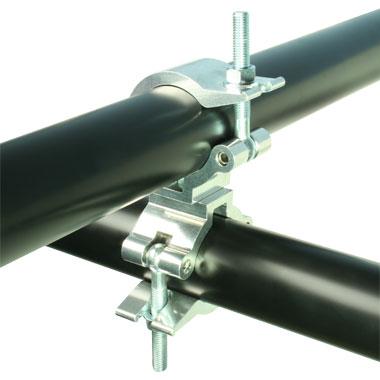

The Mammoth 90 Degree Fixed Coupler provides a firm and fast fixing between two perpendicular bars. The coupler is able to fit two bars with either the same or different diameters.
Manufactured from high tensile Aluminium Extrusion, this truss clamp is ideally used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords.
Swivel and Parallel versions are also available. For any inquiries, please contact us via chat.
Spec Sheet:
T57430 & T57431
T57435 & T57436
Cert:
T57430 & T57431
T57435 & T57436
Specifications:
- SWL: 500 Kg
- Width: 50 mm
-
Tube Diameters:
T57430 & T57431: Fit 60mm to 63mm Diameter Tubes
T57435 & T57436: Fit 1 x 60mm to 63mm Diameter Tube & 1 x 48mm to 51mm Diameter Tube - Weight: 0.90 Kg
- Material: Aluminium
- Finish: Black or Polished Aluminium
