Doughty Clamp Space Saver (SWL: 100kg)
£15.41
Doughty Clamp Space Saver (SWL: 100kg)
£18.49incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
- Space Efficiency. Reduces storage height to just 50mm - saves 100mm of space per clamp, perfect for compact setup in venues.
- Quick-Release Function. Enables fast access without tools - ideal for rapid changes during live events and touring.
- Permanent Attachment. Can remain fitted to luminaires or projectors - eliminates the risk of misplacing clamps in busy environments.
- Durable Design. Crafted from high tensile aluminium - built to withstand the rigors of professional use in theatre and film.
- Flexible Positioning. Channels for M10 nuts and bolts allow for adjustable angle - ensures optimal alignment on various equipment.
klarna.
Add an item to see installment options

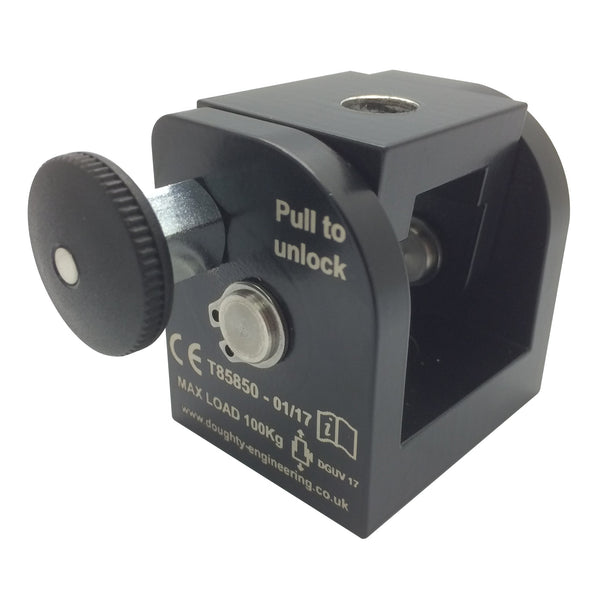

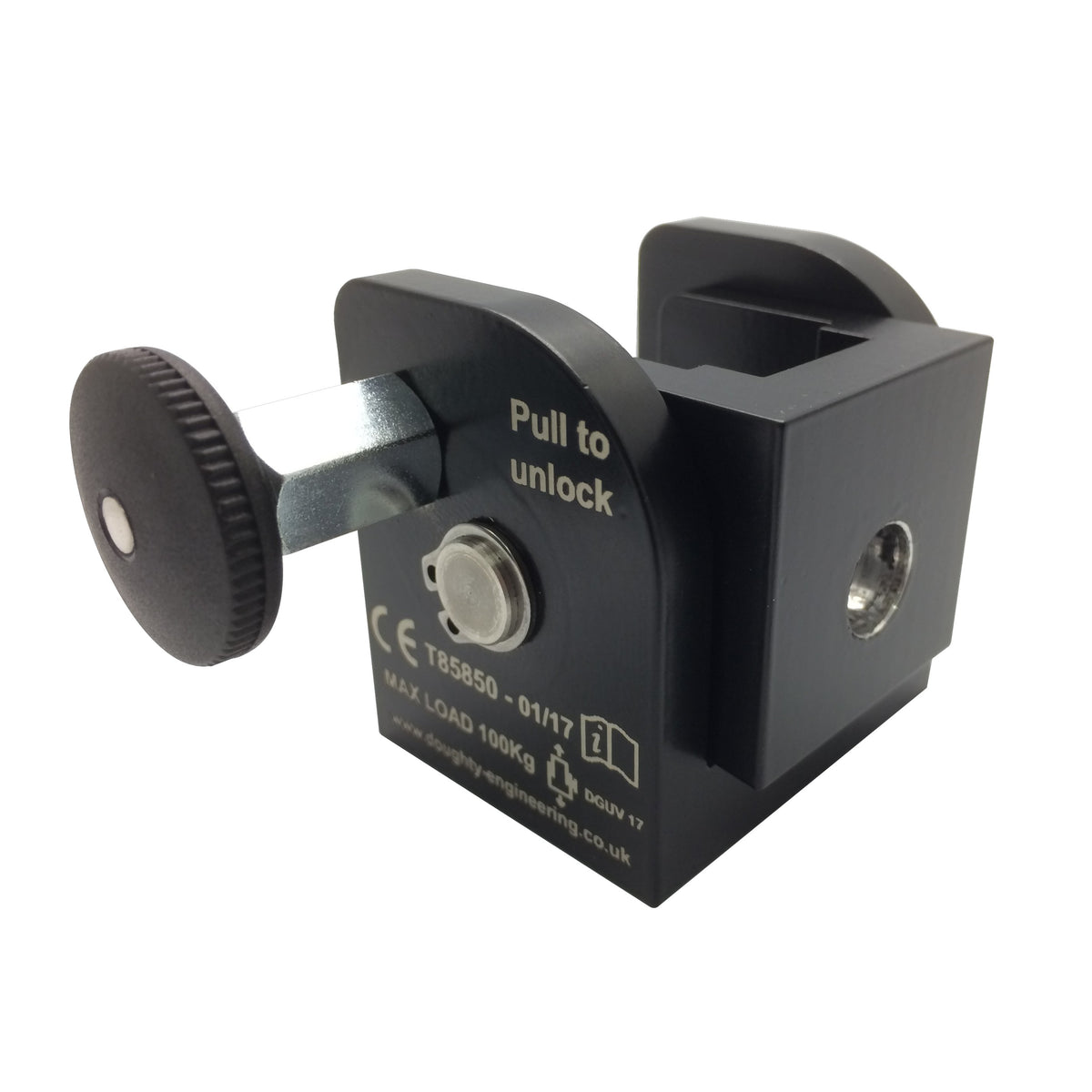

Doughty Clamp's Space Saver - Saving 100mm of Space
Doughty Clamp's Space Saver resolves the issue many customers used to have - Wasting too much space when storing clamps due to the size and shape.

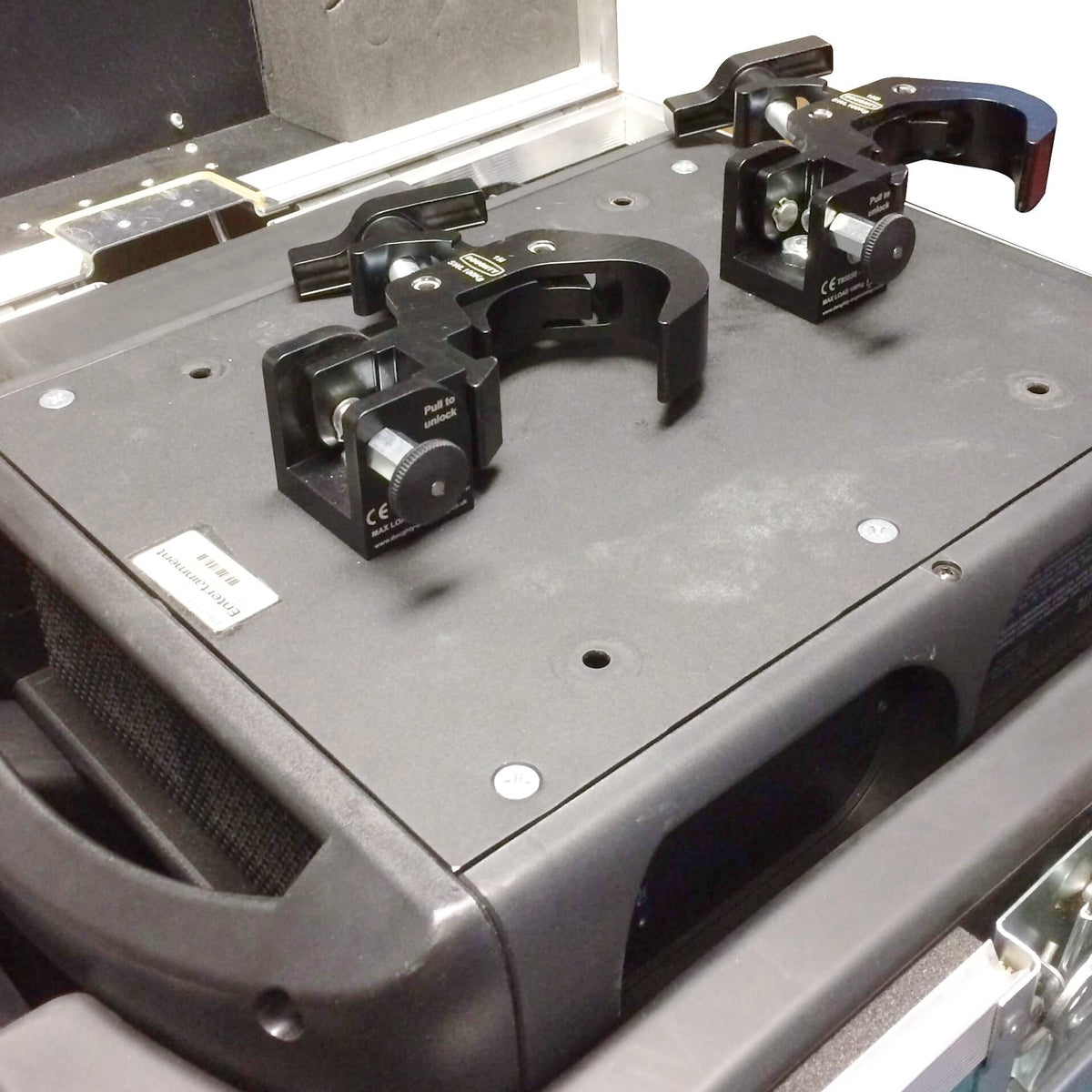

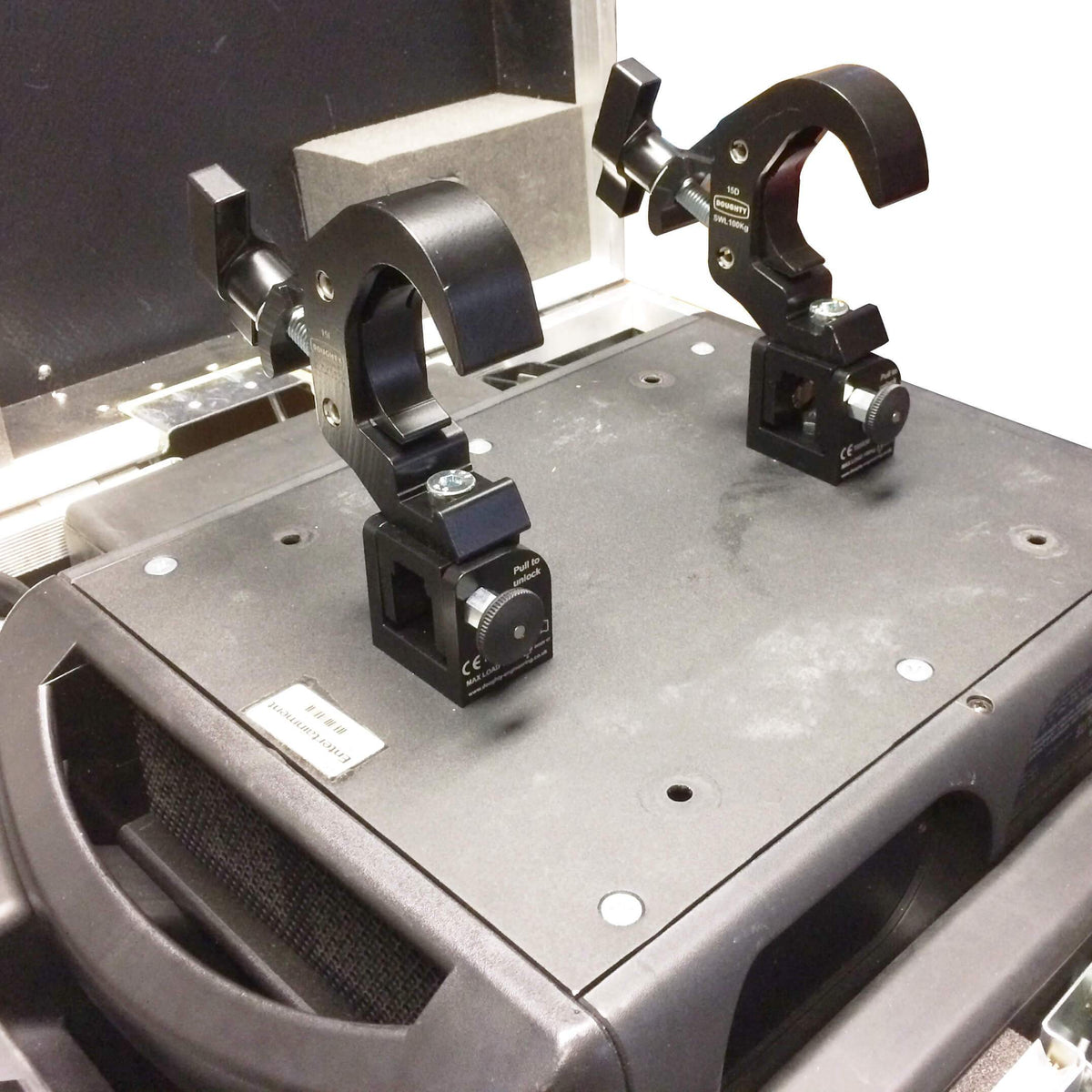

Now, this device allows the clamp to fold down into a storage position to reduce in height to just 50mm, saving 100mm of space per clamp. Also, the clamp is not lost as it can be permanently fitted to a luminaire or projector etc when it is folded down. It is manufactured from high tensile aluminium and features a quick-release lock to enable a clamp or spigot to be folded quickly without tools to speed you up when moving lights. Watch the product demo now!
The top section has a channel to hold captive an M10 hexagonal nut or hexagonal bolt while the bottom section is machined to accept an M10 socket cap bolt. This means the device can be rotated at any angle on the object to which it is fitted and secured. For any inquiries, please contact us via chat.
Features & Benefits
- Save 100mm of space per clamp
- Fit into smaller space and allow you to close the flight case lid
- Fit clamps, spigots etc and allow them to be permanently fitted to a luminaire
- Folds flat without a tool
- Speed you up when moving light
- Widely used in museums, event venues, theatres etc.

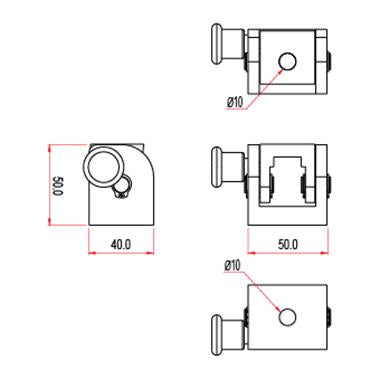

Specifications:
- SWL: 100kg
- Fixing Hole: 10mm Diameter
- Dimensions: 50mm x 40mm
- This product is Design Registered
- For more details, please check Doughty Space Saver Animation
