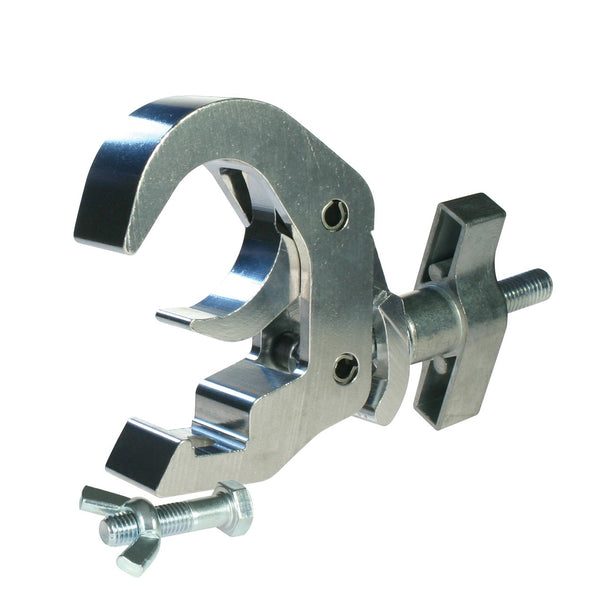

Doughty 38-51mm Slimline Quick Trigger Hook Clamp
Doughty 38-51mm Slimline Quick Trigger Hook Clamp £25.89
  • Doughty Clamp - Slimline Quick Trigger Hook Clamp (Aluminum). Supplied by MTN Shop EU
  • Doughty Clamp - Slimline Quick Trigger Hook Clamp (Aluminum). Supplied by MTN Shop EU - imagen 2
  • Doughty Clamp - Slimline Quick Trigger Hook Clamp (Aluminum). Supplied by MTN Shop EU - imagen 3
  • Doughty Clamp - Slimline Quick Trigger Hook Clamp (Aluminum). Supplied by MTN Shop EU - imagen 4
  • Doughty 38-51mm Slimline Quick Trigger Hook Clamp - imagen 5

Doughty 38-51mm Slimline Quick Trigger Hook Clamp

Doughty Engineering |
SKU: T58305
£31.07incl. VAT

Incl. VAT. Shipping calculated at checkout.

In stock
Shipping 3–7 days
Minimum order value of £45 Minimum order value of £45 is required to place an order for all Doughty products. 1 Year Warranty
Finish: Aluminium

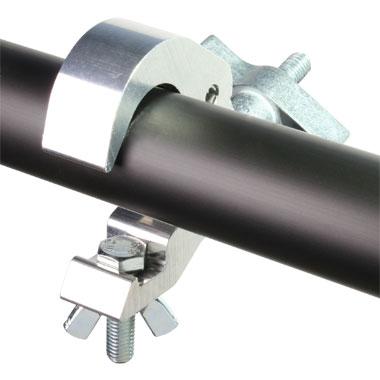

  • Versatile Application. Securely attach round tubes or truss chords - compatible with tube diameters from 38mm to 51mm.
  • Robust Construction. Manufactured from high tensile aluminium extrusion - ensures reliable performance in theatre, film, and live events.
  • Easy Installation. Features a large easy-grip handle for quick operation - ideal for safely hanging valuable luminaries without obstruction.
  • Customizable Fixings. Slotted base accommodates an M12 nut or bolt - tailored to meet your individual rigging needs.
  • Impressive Load Capacity. Supports a safe working load of 100 kg - perfect for demanding professional environments.
View full Description Technical data
american_expressapple_paydiners_clubdiscovergoogle_payklarnamaestromasterpaypalshopify_payunionpayvisa
klarna. Add an item to see installment options

You may also like

Slimline Quick Trigger Hook Clamp - Doughty Engineering

The Slimline Quick Trigger Hook Clamp is manufactured from high tensile Aluminium Extrusion and supplied with a Wing Nut and M12 Bolt Fixing. With a slotted base to captivate an M12 Nut or Bolt it enables users to create fixings suited to their own individual requirements. The 30mm width allows it to be used between truss webs etc.

Quick Trigger Clamp Demonstration - A Light Hung Next to Cross Beams Without Obstruction

A large Easy-grip handle is fitted for ease of use. This is an extremely useful clamp for hanging valuable luminaries safely and easily. Broadly used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and suspending equipment. For any inquiries, please contact us via chat.

Spec Sheet - Cert

Specifications:

  • SWL: 100 Kg
  • Tube Diameters: 38mm to 51mm
  • Width: 30mm
  • Fixings: M12 x 45 Bolt & Wing Nut
  • Weight: 0.57 Kg
  • Material: Aluminum
  • Finish: Zinc Plated & Powder Painted

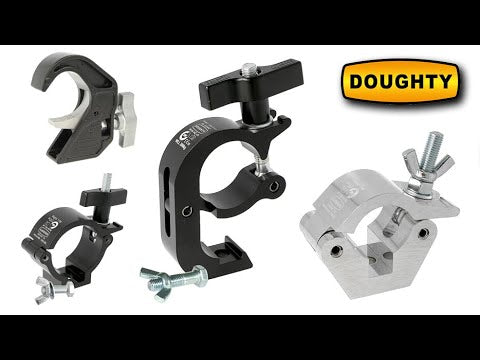

Other Quick Trigger Clamps:
