Doughty 90 Degree Fixed Coupler - 48mm Clamp
£51.43
Doughty 90 Degree Fixed Coupler - 48mm Clamp
£61.72incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Black:
Aluminium
- Secure Joint. Provides a firm fixing between perpendicular bars - designed for 48mm to 51mm diameter tubes.
- High Load Capacity. Supports up to 750 kg safely - ideal for suspending heavy equipment in demanding production environments.
- Durable Construction. Manufactured from high tensile aluminium extrusion - perfect for the rigorous demands of theatre and live events.
- Versatile Compatibility. Attaches easily to round tubes or truss chords - widely used across film, TV, and photographic industries.
- Sleek Finish Options. Available in black or polished aluminium - enhances the aesthetic for any professional setup.
klarna.
Add an item to see installment options

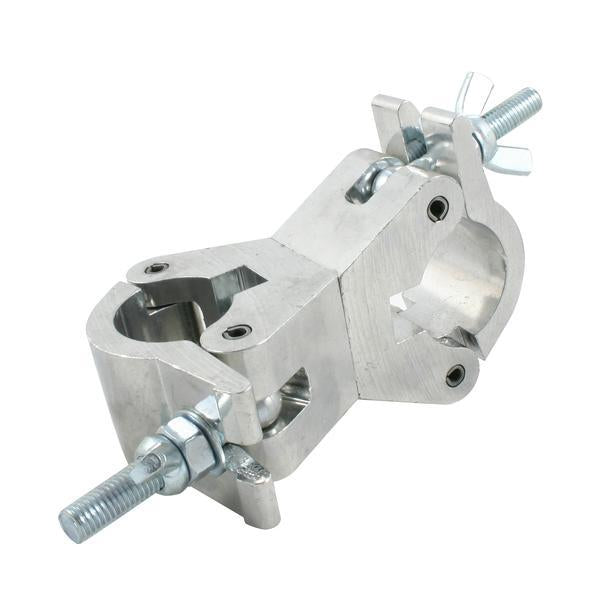

90 Degree Fixed Coupler - 48mm Clamp

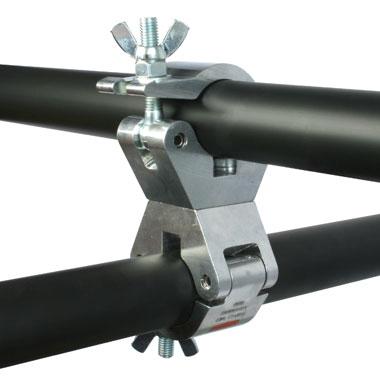

The Doughty 90 Degree Fixed Coupler provides a firm and fast fixing between two perpendicular bars. Manufactured from high tensile Aluminium Extrusion this truss clamp is designed to fit 48mm to 51mm diameter tubes.
The coupler is specifically designed to attach to round tubes or truss chords and to suspend equipment and luminaires. Broadly applicable in the theatre, film, TV and photographic industries.
Swivel and Parallel versions are also available. For any inquiries, please contact us via chat.
Spec Sheet - User Manual - Cert
Specifications
- SWL: 750 kg
- Tube Diameters: 48mm to 51mm
- Width: 50mm
- Tube Centres: 110mm
- Weight: 1.33 kg
- Material: Aluminium
- Finish: Available in Black or Polished Aluminium.
