Doughty Bow Shackle - Screw Pin
£2.47
Doughty Bow Shackle - Screw Pin
£2.96incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
12mm:
6mm
Green:
Silver
- Versatile Connection. Provides strong anchoring for diverse applications - ideal for TV, film, and live events.
- Quick Assembly. Designed for easy connect and disconnect - perfect for frequent stage rigging tasks.
- Corrosion Resistant. Galvanized finish ensures protection from rust - maintains durability in outdoor environments.
- Generous Loop Design. Capable of gathering multiple sling legs - optimizes rigging efficiency while managing side-loading.
- Budget-Friendly Quality. Combines affordability with high performance - a reliable choice for temporary lifting jobs.
klarna.
Add an item to see installment options
Bow Shackle-Screw Pin
Shackles are the most versatile rigging hardware providing a strong connection for multiple industries. Doughty Bow Shackle-Screw Pin or called screw pin anchor shackle is designed for easy assembly and disassembly. Note: The pin has to be tightened prior to each lift. This range is perfect for temporary lifting jobs or those that require frequent connects and disconnects e.g. stage. If a permanent installation is required, the screw pin type is not suitable.
These galvanized shackles also offer excellent protection from rust and corrosion, making it a budget and good quality choice. Unlike Chain Shackles, this range features a more generous loop that can be used in entertainment rigging applications to gather multiple sling legs or perform side-loading tasks with a required reduction in Working Load Limit (see the reference sheet below).
Multiple Bow Shackle Sizes for the silver pin and the green pin are available.
Spec Sheet - Reduction in WLL Reference
FEATURES:
-
Forged steel shackles with Grade 6 rating
-

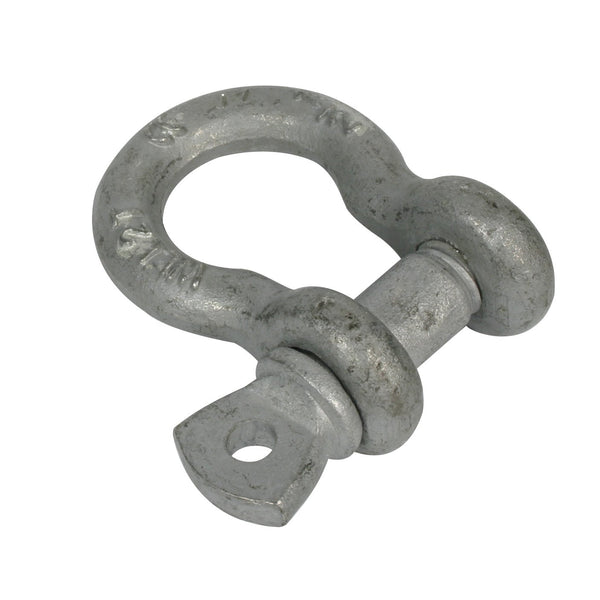

Silver Pin - An economical range of galvanized shackles rated and marked with a Working Load Limit (WLL).
-

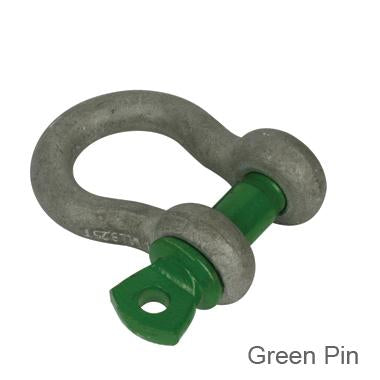

Green Pin - A range of galvanized shackles with an easily identifiable "Green Pin". These shackles are rated and marked with a WLL.
SPECIFICATIONS
- Standard: British Standard EN 13889, US Federal Specification RR-C-2718
-
Scew Pin Size / Mouth Width:
- 6mm/9.5mm
- 8mm/12mm
- 10mm/13mm
- 12.5mm/17mm -
SWL:
- 330kg for 6mm pin diameter
- 500kg for 8mm pin diameter
- 750kg for 10mm pin diameter
- 1500kg for 12.5mm pin diameter
