Limit Switch Shaft Assembly - 44 Tpi (Model L & R)
Limit Switch Shaft Assembly - 44 Tpi (Model L & R)
In stock
Limit Switch Shaft Assembly - 44 Tpi (Model L & R)

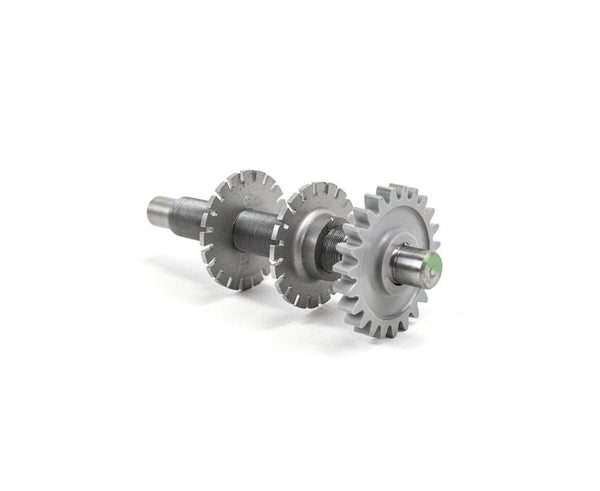

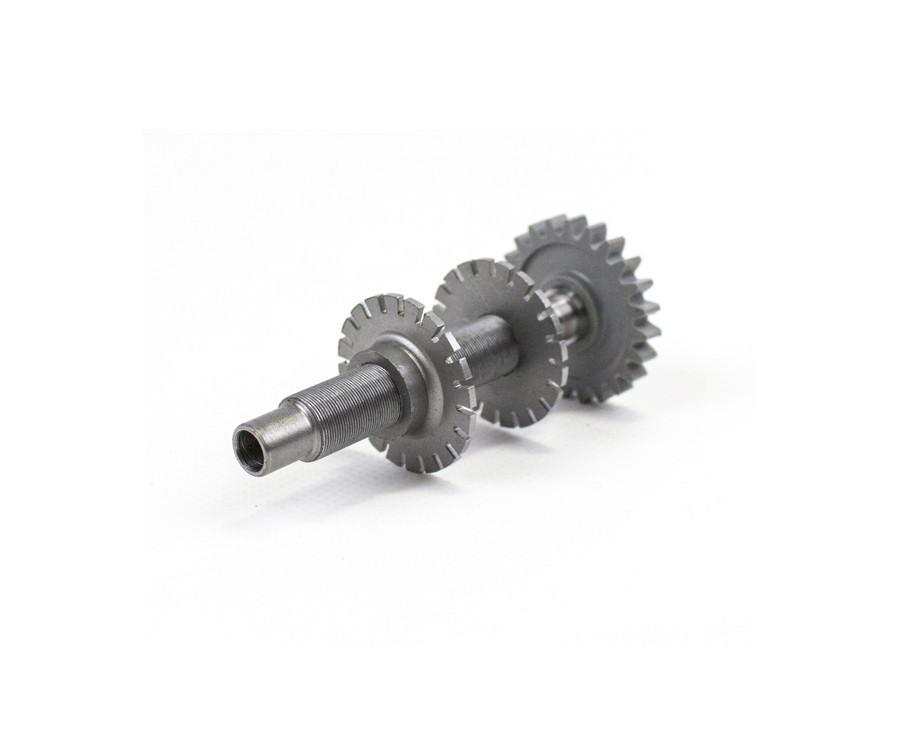

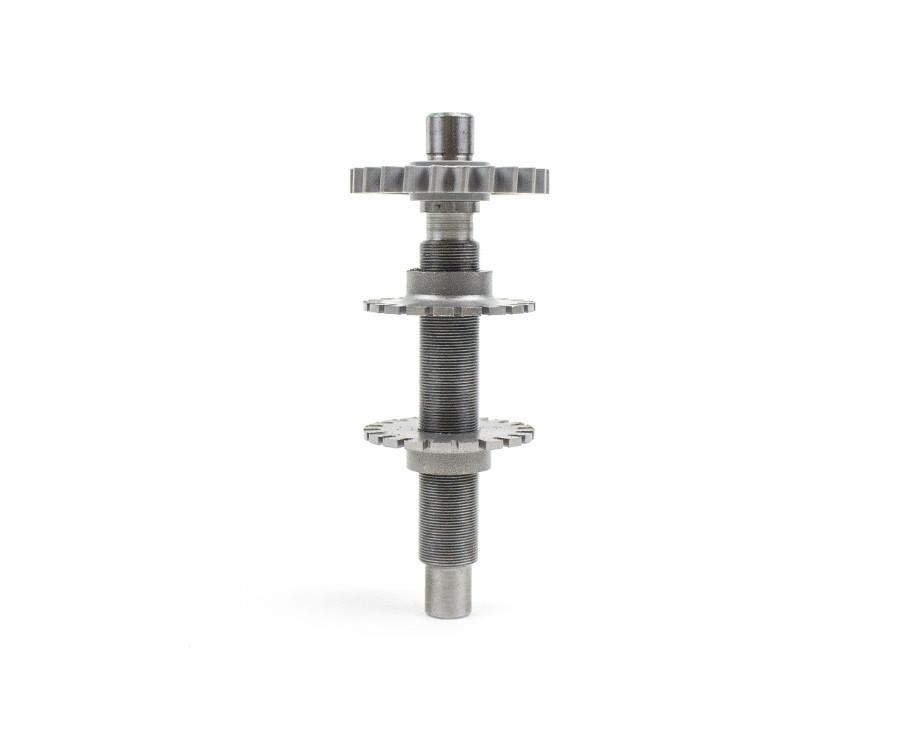

This Limit Switch Shaft Assembly contains a 44 TPI shaft and gearing for Next-Gen Lodestar Large Frame Model L & R hoists. The chart below displays the maximum lift of each hoist using each of the different Limit Switch Shaft assemblies:
| Maximum Lift - 44 TPI Shaft | Maximum Lift - 56 TPI Shaft | Maximum Lift - 64 TPI Shaft | ||||
| Hoist Model | meters | feet | meters | feet | meters | feet |
| J & L | 39 | 127 | 49 | 162 | 56 | 185 |
| LL | 76 | 250 | 97 | 318 | 111 | 363 |
| R | 20 | 64 | 25 | 81 | 28 | 93 |
| RR | 38 | 124 | 48 | 158 | 55 | 181 |
| RRS | 38 | 125 | 48 | 159 | 55 | 182 |
