Key Clamp: Doughty Railing Base Flange
£11.51
Key Clamp: Doughty Railing Base Flange
£13.81incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
- Superior Strength. Provides maximum support for vertical tubes - designed with mounting holes aligned for optimal guardrail strength.
- High Durability. Withstands harsh environments due to corrosion resistance - crafted from malleable iron with a galvanized finish.
- Easy Installation. Large mounting holes accommodate various fixing methods - suitable for both mechanical and chemical anchors.
- Reusable and Sustainable. Fully salvageable design reduces waste - ideal for long-term projects and touring events.
- Versatile Use. Compatible with 48mm tubes for a range of applications - perfect for theatre, film, and live events.
klarna.
Add an item to see installment options

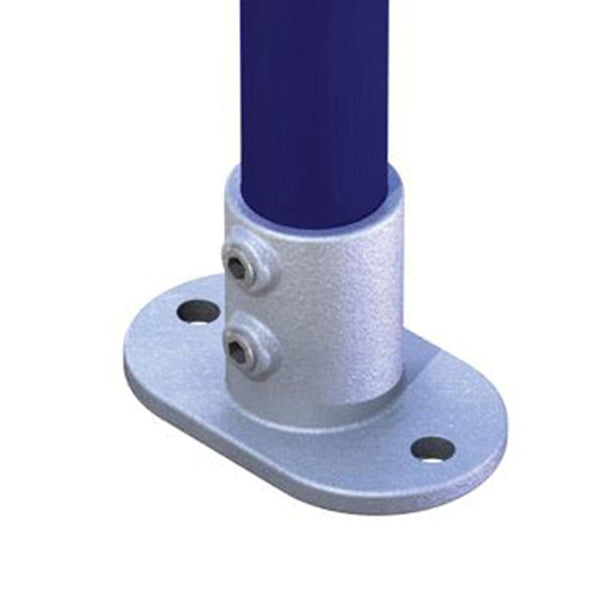

Key Clamp: Doughty Railing Base Flange
A structural base plate for all aspects of vertical tube support.

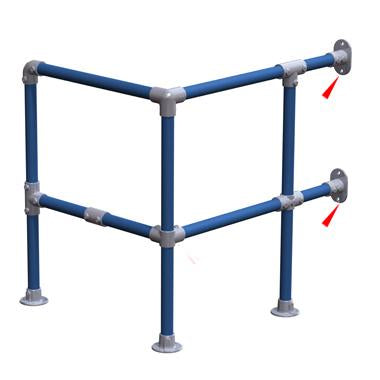

This fitting, when used as a base plate for guard-railing, should always be positioned with the holes across the line of the guardrail to give maximum strength.
The holes in the base plate are large enough to enable the use of mechanical or chemical anchor fixings. For any inquiries, please contact us via chat.
Features:
- High corrosion resistance
- 100% salvageable & reusable
- Malleable iron castings with a galvanized finish to BS729

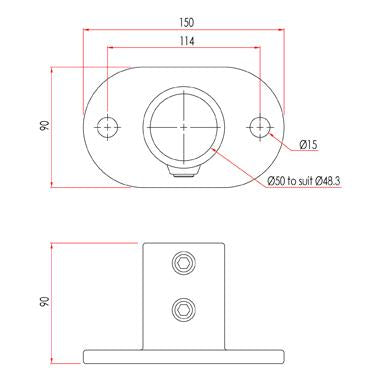

Specifications:
- Mounting Holes: 2 x 15mm diameter
- Tube Diameter: 48mm
- Weight: 1.27 Kg
