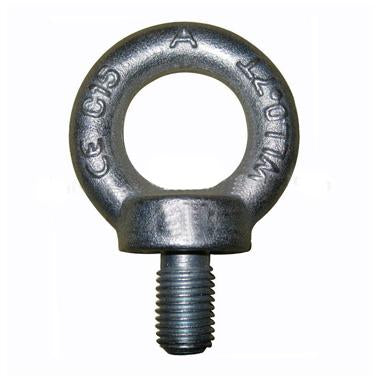

Doughty M12 Eye Bolts
£3.20
Doughty M12 Eye Bolts
£3.84incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
Large Eye:
Standard
- Strong Lifting Capability. Designed for heavy-duty rigging applications - supports substantial loads in TV, film, and live events.
- Secure Attachment. Features a threaded shank for dependable anchoring - ensures stability for ropes and cables during operation.
- Versatile Applications. Ideal for both lifting and securing loads - accommodates various rigging scenarios in theatre and touring situations.
- Compliance Assured. Adheres to British Standard 4278 - guaranteeing reliability and safety in professional setups.
- Easy Integration. Large ring diameter simplifies tethering - seamless connection for streamlined material handling.
klarna.
Add an item to see installment options
M12 Eye Bolts
What is an Eye Bolt?
An eye bolt, consisting of a threaded shank/rod with a ring at one end, is one of the most commonly used gear in material handling and lifting industry.
The threaded shank can be securely screwed into a structure. Once the bolt is secured in place, ropes or cables can be anchored to or fed through the protruding ring.
Different types of Eye Bolts:
There are many eye bolt types on the market for different uses. Generally speaking, heavy-duty eyebolts can be used in rigging for lifting heavy loads, whereas smaller eyebolts for tensioning wires, securing loads and in other non-load bearing applications. There are 2 common types widely used- Collar eye bolts and dynamo eye bolts - and are covered by the British Stanard 4278.
- Dynamo Eye Bolts: It is relatively low cost with larger ring diameter, for axial lifting (not for an angled lift) only. Usually, it can be used only a few times during the lifetime of the equipment they were screwed into.
- Collar Eye Bolts: With a large collar between the eye and the screw thread, it can be used for both axial and non-axial lifting. SWL has to be reduced by the appropriate factor for non-axial lifting. For the SWL reduction, please refer to the BS 4278:1984 attached below. When the collar is screwed firmly down onto a machined face, it can support the eye and prevent any bending of the screw thread. The smaller ring diameter also minimizes the leverage.
Eye bolt sizes:
At MTN Shop, you can find M6, M8, M10 and M12 Eye Bolts. Doughty eye bolts are a Steel Eye with male thread and zinc plated finish. Multiple options are available. For eye bolt inspection, material details, care & maintenance etc, please refer to the British Standard 4278:1984 below or contact us via Chat.

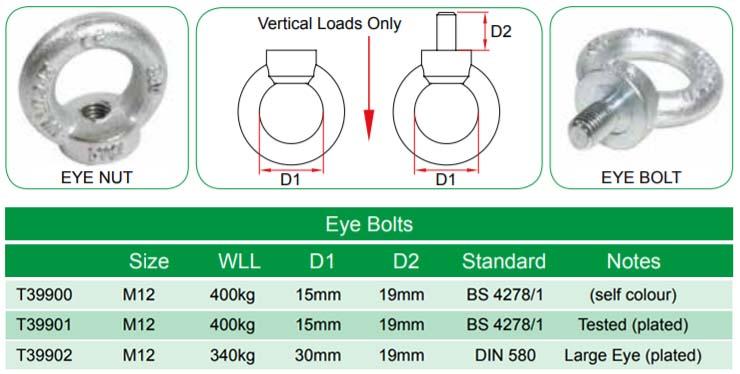

British Standard 4278:1984 - Datasheet (DIN 580 & BS 4278:1984)
Specifications:
- Material: Hardened and Tempered
- Eye Bolt size: M12
- SWL: 340 kg complied to DIN580; 400kg complied to BS 4278
- Dimension: Please refer to the datasheet above
- Recommended WLL for Angled lifting: Please refer to the datasheet above
