Doughty Lindapter Flange Clamp (Max. 23mm Thick)
£8.67
Doughty Lindapter Flange Clamp (Max. 23mm Thick)
£10.40incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Shipping 3–7 days
Minimum order value of £45
Minimum order value of £45 is required to place an order for all Doughty products.
1 Year Warranty
- Quick Installation. Streamline your setup with no drilling or welding required - designed for flanges up to 23mm thick.
- High Load Capacity. Dependable support for heavy loads - safe working load of 300kg ensures reliability in demanding environments.
- Secure Grip. Engineered with a high-tensile hex set screw for maximum stability - ideal for suspending equipment in live events and productions.
- Cost-Effective Solution. Reduce labour costs and installation time significantly - a practical choice for theatre and touring applications.
- Versatile Use. Perfectly compatible with girder flanges and flange beams - versatile design accommodates a range of rigging needs.
klarna.
Add an item to see installment options
Lindapter Flange Clamp

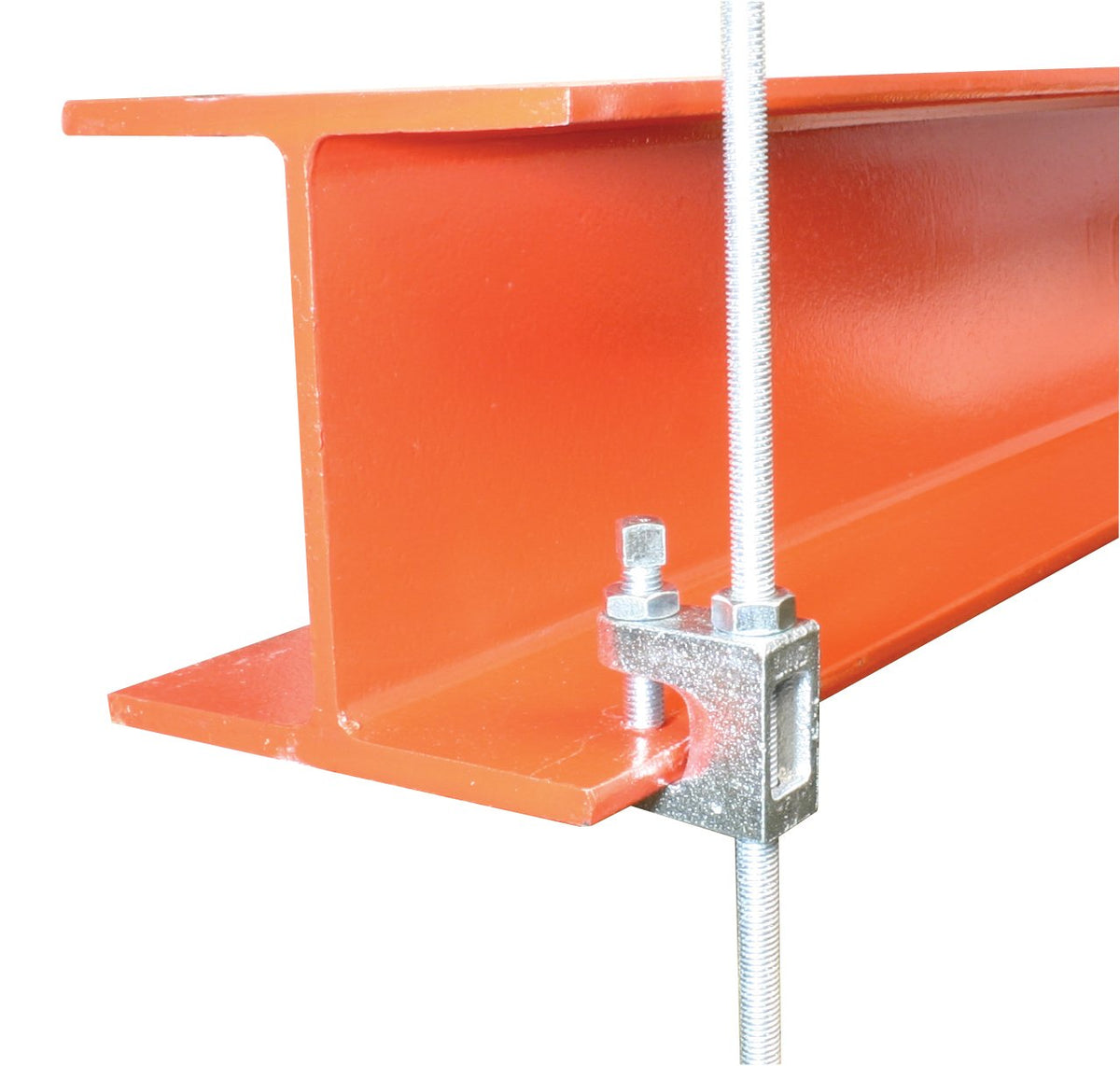

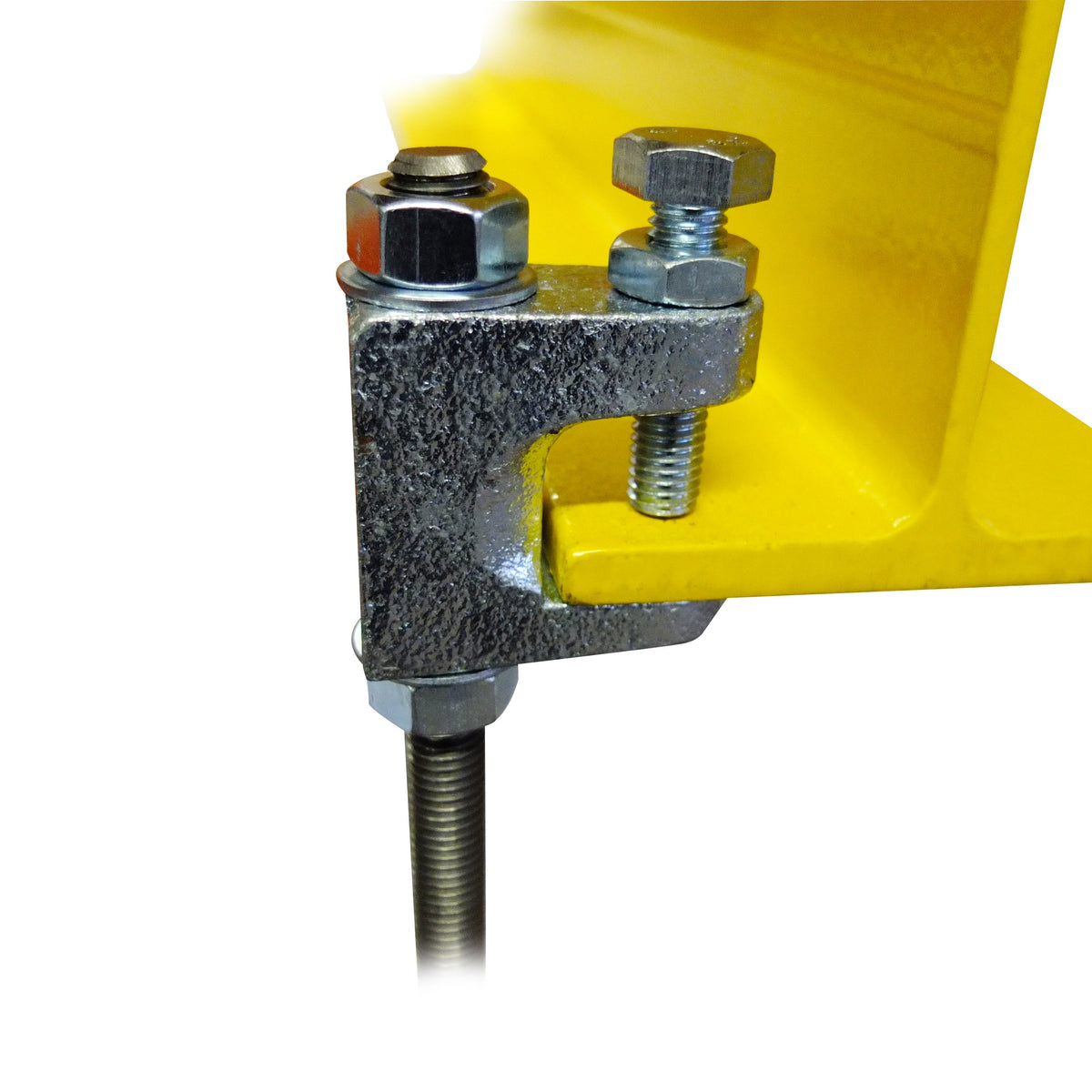

The Lindapter Flange Clamp is designed specifically to mount on to Girder Flanges/Flange Beams. It uses a Hex Set Screw which is a high-tensile cup point screw for a secure grip.

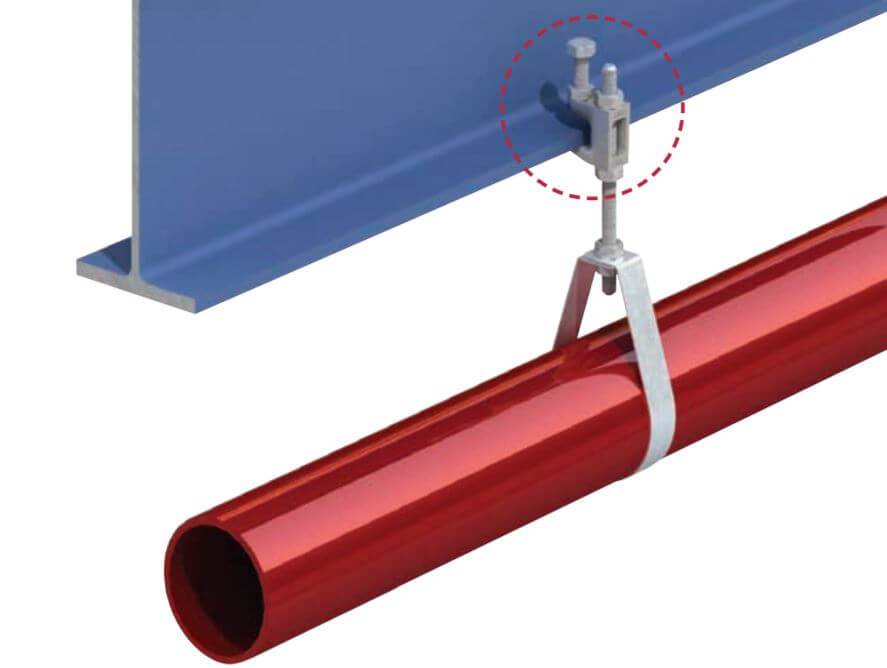

With the rear hole with 13mm diameter, it can be used to drop M12 studding from flanges up to 23mm thick for suspending loads.
Lindapter Flange Clamp provides a faster, cost-effective alternative to on-site drilling or welding. It also reduces installation time and labour costs.
For any inquiries, please contact us via chat.
Specifications:
- Clamping Thickness: 3 - 23mm
- SWL: 300Kg
- Fixing: M12 Hole
- Weight: 0.2kg
- Material: Steel

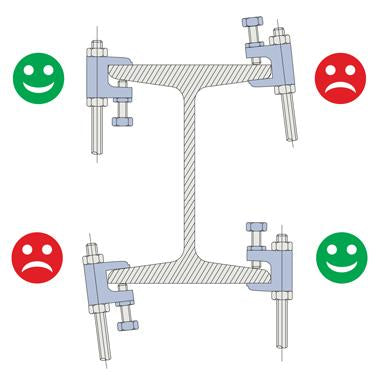

Lindapter Flange Clamp Installation:
1) Slide the clamp onto the beam flange and tighten the Set Screw to the recommended torque (See the spec sheet).
As a guide, tighten the Set Screw finger tight and then apply an additional quarter turn (90°) with a spanner.
2) Tighten the locknut (N) to the recommended torque (See the spec sheet).
